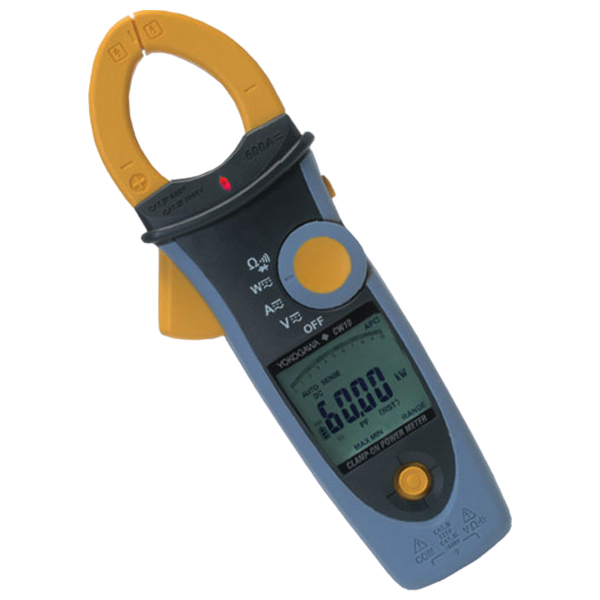

CW10 | Yokogawa Clamp-on Power Meter (Single-Phase)

Part Number: CW10Model: Clamp-on Power Meter (Single-Phase)Manufacturer: YokogawaFeaturesAC / DC Power up to 600 kW, AC / DC Voltage max. 1000 V, AC / DC Current max. 600 ATrue RMS for AC .Harmonics 1st to 25th orderPower fluctuation using the ACA Inrush and Peak hold functions.Frequency, Resistance, Continuity, Diode check, Power factor.Up to 9999 counts, approx. 37mm max. diameter of measurable conductor (the jaw opens approx. 45mm max.)CATIV 600V and CATIII 1000V compliant for safety.Backlight on the display area turns on and a white LED automatically illuminates the front of jaw when clamping.Non-contact Voltage Detection (Red LED lights up on detection).Easy Operation with the Navigator key.Low Pass Filter, Phase Detection, AC / DC Auto Sense.
