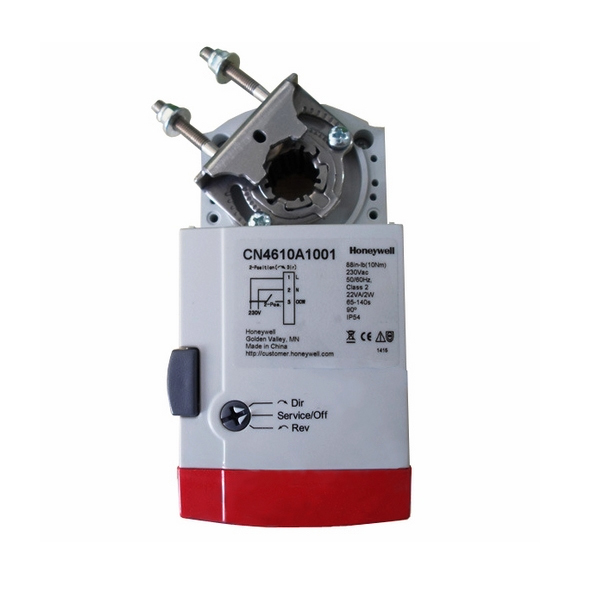

HoneywellHoneywell Non-spring return, 5/10 Nm, SmartActDirect-coupled actuators for air dampers, ventilation flaps, louvers and VAV-units.Protection class: IP54End switch function/capacity: SPDT switch 230 V, 5(3) A for models with end switchShaft mounting: for round shafts 8..16 mm; square shafts 6..13 mmRemovable wiring box for direct wiring to and from controllerRotation direction selectable by switchAdjustable mechanical end limits included24 VAC models are also suitable for 24 VDCSpring ret
Model
Damper Actuator
Part Number
CN4610A1001
Shipping Weight
1 Kg
Артикул
CN4610A1001
Описание
Part Number: CN4610A1001Model: Damper ActuatorManufacturer: HoneywellHoneywell Non-spring return, 5/10 Nm, SmartActDirect-coupled actuators for air dampers, ventilation flaps, louvers and VAV-units.Protection class: IP54End switch function/capacity: SPDT switch 230 V, 5(3) A for models with end switchShaft mounting: for round shafts 8..16 mm; square shafts 6..13 mmRemovable wiring box for direct wiring to and from controllerRotation direction selectable by switchAdjustable mechanical end limits included24 VAC models are also suitable for 24 VDCSpring return: noBuilt-in rotation limiter: yesManual operation: yesFor damper area of 2 square metersPower supply: 230VacControl input signal: 2-ptEnd switches: noPosition feedback: noRuntime: max. 140sTorque: 10NmDamper area: 2m2
