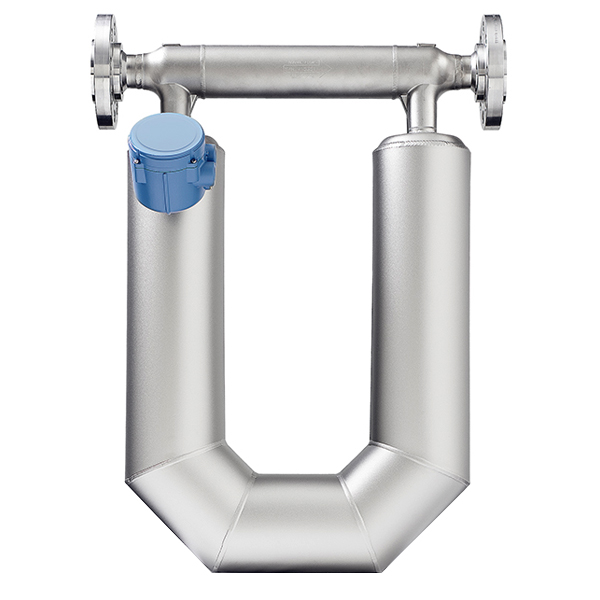

CMF300M426NRHZEZZX | Micro Motion ELITE CMF300M Coriolis Meter

SpecificationsMass flow accuracy (Liquid): ±0.10% of rate (standard)±0.05% of rate (optional)Mass flow repeatability (Liquid): ±0.05% of rate (standard)±0.025% of rate (optional)Volume flow accuracy (Liquid): ±0.10% of rate (standard)±0.05% of rate (optional)Volume flow repeatability (Liquid): ±0.05% of rate (standard)±0.025% of rate (optional)Mass flow accuracy (Gas): ±0.35% of rateMass flow repeatability (Gas): ±0.20% of rateDensity accuracy (Liquid): ±0.0005 g/cm3 (±0.5 kg/m3) (standard)±0.0002 g/cm3 (±0.2 kg/m3) (optional)Density repeatability (Liquid): ±0.0002 g/cm3 (±0.2 kg/m3) (standard)±0.0001 g/cm3 (±0.1 kg/m3) (optional)Temperature accuracy: ±1 °C ±0.5% of readingSensor maximum working pressure: 1,730 psig (119 barg)Meter approvals, calibrations, and certifications: ULCSAIECExNEPSIATEXIngress ProtectionEMC effectsFeaturesGet unparalleled measurement sensitivity and stability from this uniquely designed meterGain real-time and in-process measurement integrity assurance with Smart Meter VerificationRealize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applicationsAchieve superb measurement confidence with the highest immunity to fluid, process and environmental effectsImprove scalability with a broad array of application coverage including hygienic, cryogenic and high-pressureImplement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
