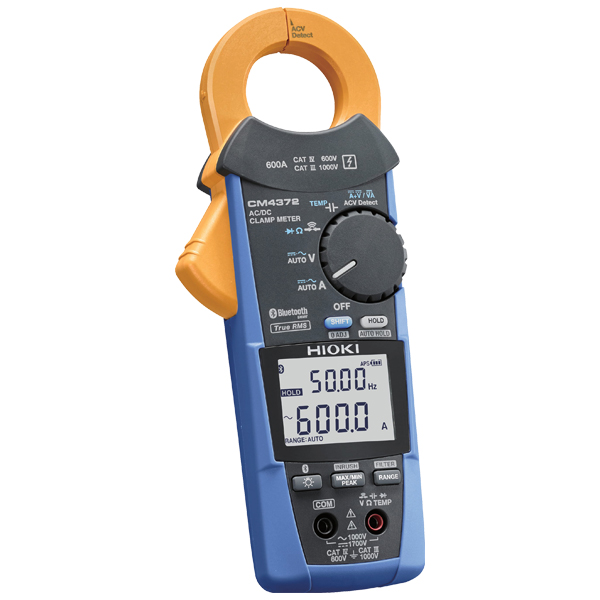

Key FeaturesSend measured values to a smartphone or tablet using Bluetooth® wireless technologyMultiple measurement functionsAutomatic AC/DC function helps boost work efficiencyMeasure DC voltages of up to 1700 V (*1) for open voltage inspections of solar panelsSimultaneously measure inrush current in RMS and crest valuesExpanded -25 °C to 65 °C operating temperature rangeIP54 dustproof and waterproof enclosure *Jaws (current sensor portion): IP50SpecificationsDC Current range20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)AC Current range20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A)Crest factor20.00 A range: 7.5, 600.0A range: 3 or lessDC+AC Current range20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±0.13 A (at 20 A)DC Voltage range600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)AC Voltage range6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.013 V (at 6 V)DC+AC Voltage range6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz: ±1.0% rdg. ±0.023 V (at 6 V)Resistance range600.0 O to 600.0 kO, 4 ranges, Basic accuracy: ±0.7% rdg. ±0.5 O (at 600 O)Capacitance range1.000 µF to 1000 µF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 µF (at 1 µF)Frequency range9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)Temperature (K)-40.0 to 400.0 °C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 °CVoltage detectionHi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 HzOther functionsAutomatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustmentDustproof, waterproofGrip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet.InterfaceBluetooth® 4.0LE, Supported devices: iOS, Android™ smartphone/tabletGENNECT Cross (free downloadable app) : display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save functionPower supplyLR03 Alkaline battery ×2, Continuous use: 45 hr (Backlight OFF, Bluetooth® OFF), 24 hr (Backlight OFF, Bluetooth® ON)Core jaw diameterf33 mm (1.30 in), Jaw dimension: 69 mm (2.72 in) W× 14 mm (0.55 in) DDimensions and mass65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz)AccessoriesTEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1
