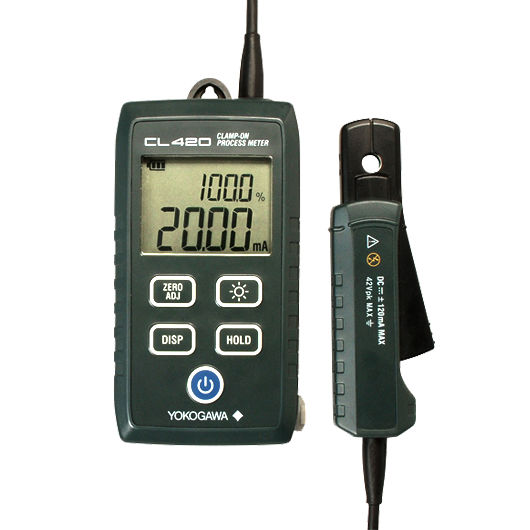

CL420 | Yokogawa Clamp-on Process Meter

Part Number: CL420SpecificationsModel: CL420 - Clamp-on Process MeterDiameter of measurable conductor: 6mm diameter max.DC Current: 20 mA: 0.00 to?21.49mA (100 mA: ?21.0 to ?126.0mA) [Range and resolution]; ?(0.2%rdg+5dgt)? ?(1.0%rdg+5dgt) [Accuracy?]DC Voltage OUTPUT [10mV/mA]: 20 mA: 0.0 to?214.9mV (100 mA: ?210 to?1260mV); (DCA Accuracy)+(?0.5mV) (DCA Accuracy)+(?3mV)Display: 4-digit LCD Numeric displayResponse time: Approx. 1.5 seconds (2.5 seconds when across the range)Range switching: Auto rangeOperating temperature and humidity: -10?C to +50?C 80% RH or less (no condensation)Safety Standards: EN61010-1, EN61010-2-030, EN61010-2-032Withstanding voltage: 2.21kV AC for 5 seconds (between the core and the case)Power supply: Four AA-size alkaline batteries (1.5V LR6)Battery life: Approx. 60hrs (continuous) backlight off and LED light offOther functions: Data hold, Zero adjust function, Auto power off, LED Torch light, Back light display, Illuminant panelExternal dimensions and weight: 61 (W) x 111 (H) x 40 (D) mm [Approx. 290g (including batteries)]Standard accessories: User s Manual, Batteries, Soft case (93045)NOTE:At 23?C ?5?C, 45% to 75%RH. Measurement accuracy: ?(% of reading + digits). Terms of accuracy: Open and close the clamp sensor after power on and perform zero adjustment.The 20mA range accuracy assurance is the average of 5 times measuring.
