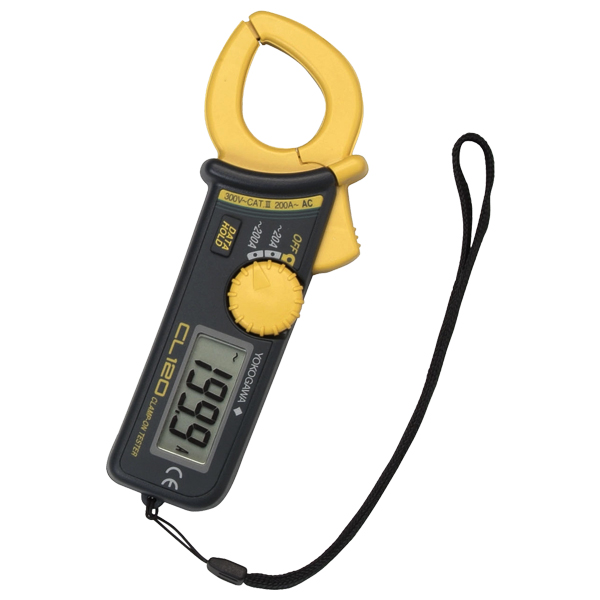

CL120 | Yokogawa Mini Clamp-on Tester

Part Number: CL120Brand: YokogawaFeaturesExclusive model for AC current measurement with current ranges up to 200A24mm in diameter of measurable conductorLight weight & compact designMean value displayData hold functionApproved for conformity to safety standards EN61010-1,EN61010-2-032 (CAT. Ill 300 V)SpecificationsDisplay (LCD, Digital Counts): 1999AC Current Accuracy (20A Reference): 2.0+7 (50~1kHz)AC Current Accuracy (200A Reference): 2.0+5(50/60Hz)3.0+10(40~1kHz)Method of detection: Mean ValueResponse Time: Approx. 2 secondsRange Switching: Manual-rangeData hold: On all rangeOperating temperature and humidity: 0-40°C, 85% RH or less (no condensation)Influence of external magnetic field: 0.8A or less at 400A/mInfluence of conductor position: ± 2% or lessSafety Standard: Conforms EN 61010-1, EN61010-2-032Circuit voltage: 300Vrms or lessWithstanding voltage: 3.7kV AC for one minutePower Supply: LR-44x2(3V) or SR-44x2Battery Life¹: 100 hoursConsumed current: Approx. 1mAAuto power-off: Approx. 10 minutesDiameter of measurable conductor: 24mm at maximumDimensions: Approx. 59(W)x210(H)x40(D)mmWeight (Approx.): 400gAccessories: Clamp Adapter (Model 99025), Carrying Case (Model 93033), User's manual (IM CL120), Batteries
