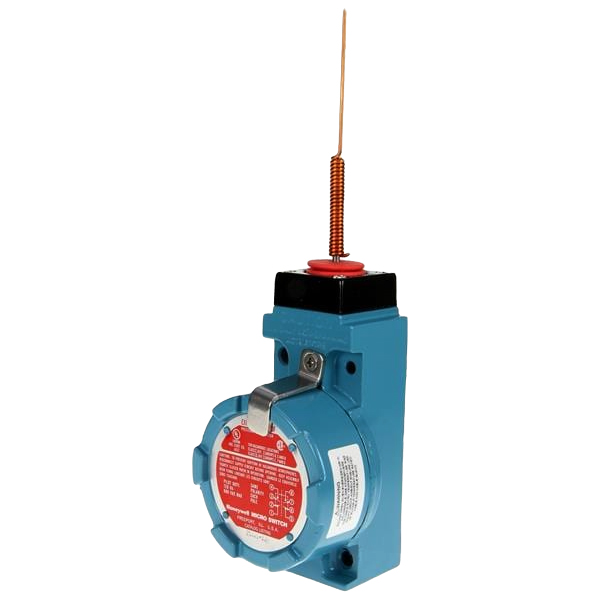

BXA3K-1A | Honeywell MICRO SWITCH Hazardous Area Switch

FeaturesApprovals: UL, CSA, ATEX (CE), IEC Ex, INMETRO (Brazil), NEPSI Ex (China), KOSHA (select listings - Korea), and EAC (formerly GOST-R, Russia)Sealed to IP67, NEMA 1, 3, 4, 6, 13Industry-leading breadth of productsTwo rugged designs are available: aluminum or corrosionresistant stainless steel head and bodyA diaphragm seal between head and body provides an extra measure of protectionOptional fluorocarbon seals are available for harsh chemical or higher temperature environmentsSecure head-to-body retention with the head in any one of four positions 90° apartSelf-lifting pressure plate terminals saves wiring time.Wide variety of non-sparking actuators, switch options, and head styles for design flexibilityRotary actuated heads are field adjustable for CW actuation, CCW actuation, or both to reduce inventoryChoice of silver or gold-plated contacts Technical Specifications Approvals Div 1 & 2, Class I Groups B, C, & D; Div 1 & 2, Class II Groups E, F, & G; II 2 G Ex d IIC T6 Gb; 1 Ex d IIC T6 Gb; II 2 D Ex tb IIIC T85C Db Series Name BX Switches Pretravel (PT) 15° max. Overtravel (OT) 60° min. Actuator Side Rotary Lever Type Lever Not Included - Reference Lever Required Accessory Ampere Rating 10 A Thermal Termination Type 0.5 in - 14NPT Conduit Sealing IP67; NEMA 1, 3, 4, 6, 13 Sealed Explosion-proof Agency Approvals and Standards UL, CSA, ATEX (CE), IEC Ex, INMETRO, KOSHA, NEPSI, EAC (Gost-R) Differential Travel (DT) 5° max. Product Type MICRO SWITCH Weather-Sealed, Explosion-Proof Limit Switches/European and Global Approvals Supply Voltage 600 Vac and 250 Vdc max. Circuitry 1NC 1NO SPDT Snap Action, Double-Break Housing Material Aluminum Housing Type BX Non Plug-in Operating Temperature -40°C to 70°C [-40°F to 158°F]
