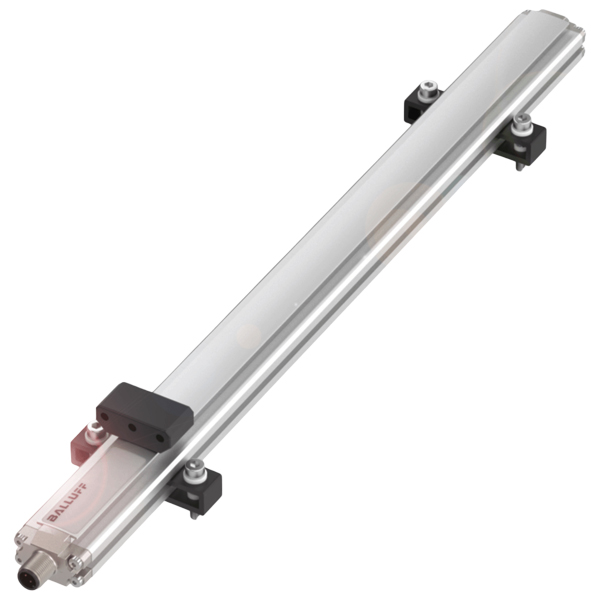

BTL6-E500-M0750-PF-S115 | Balluff Magnetostrictive Linear Position Sensor
Артикул: QT-40212
от 339 848 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Estimated Lead Time | 6 - 8 Weeks |
|---|---|
| ID каталога | 44030 |
| Manufacturer | Balluff Key FeaturesStyle: Profile seriesMounting: Mounting clampsHousing material: Aluminum, AnodizedMagnets, number max.: 1Connection: Connector, M12x1, 8-pinAnalog output: Analog, current 4…20 mAMeasuring range: 750 mmSampling frequency max.: 1000 HzResolution: = 700 nANon-linearity max.: ±0.04 %FSRepeat accuracy: ± 0.002 %FSOperating voltage Ub: 10...30 VDCAmbient temperature: -25...70 °CIP rating: IP67Approval/Conformity: CE, cULus, EAC, WEEE |
| Model | Magnetostrictive Linear Position Sensor |
| Part Number | BTL6-E500-M0750-PF-S115 |
| Shipping Weight | 1 Kg |
| Артикул | BTL6-E500-M0750-PF-S115 |
Описание
Part Number: BTL6-E500-M0750-PF-S115Model: Magnetostrictive Linear Position SensorManufacturer: Balluff Key FeaturesStyle: Profile seriesMounting: Mounting clampsHousing material: Aluminum, AnodizedMagnets, number max.: 1Connection: Connector, M12x1, 8-pinAnalog output: Analog, current 4…20 mAMeasuring range: 750 mmSampling frequency max.: 1000 HzResolution: = 700 nANon-linearity max.: ±0.04 %FSRepeat accuracy: ± 0.002 %FSOperating voltage Ub: 10...30 VDCAmbient temperature: -25...70 °CIP rating: IP67Approval/Conformity: CE, cULus, EAC, WEEE
