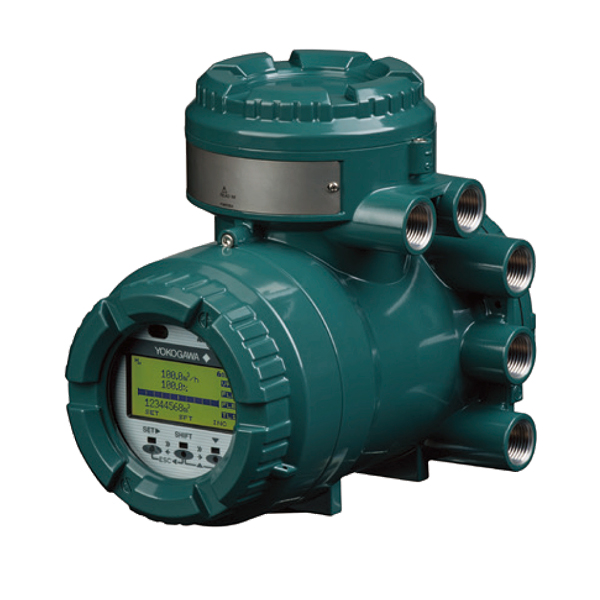

AXG010-CANF2BA1-AP114B-1JA12/SCT/L3/M01/CH | Yokogawa AXG Magnetic Flowmeter

Model and Suffix Codes Model AXG010 Magnetic Flowmeter (10 mm/0.4 in) Use -C Explosion protection Construction A Integral flowmeter Explosion Protection NF2 Process connection BA1 Stainless Steel Flange (F304): ASME Class 150 Flange Lining A PFA Lining Electrode P Platinum-Iridium Grounding Device 1 None Housing and Coating 1 Standard Material with Standard Coating Cable Entry 4 ISO M20×1.5 Female Accuracy B Standard Power Supply -1 100-240 V AC / 100-120 V DC Communication and I/O JA #: A, B, C, D, E, F, G, H, J, K, P, Q, R, S, T HART 7 and I/O (Type A to K, P to T, See separate table) Transmitter Wiring Terminal 1 M4 Screw-type Display 2 With Display (English, Chinese) Stainless Steel Tag Plate /SCT The pendant type tag plate (stainless steel 304) is wired around the flowmeter neck. Select optional code SCT when necessary in addition to that on the nameplate, on which the Tag No. is inscribed.Plate size (Height x Width): Approx. 12.5 mm x 40 mm (4.92 in. x 15.7 in.) Calibration Certificate (Level 3) /L3 The Declaration and the Primary Standard List are issued. Material Certificate /L3 Material certificate is issued.Target Parts:PFA Lining: Measuring Pipe, Electrodes, Grounding Devices (Grounding Rings Plate Type, Grounding Rings Electrode Type, or Built-in Grounding Electrodes), Flanges (for flange type), Mini-flanges (for wafer type), Adapters for HygienicCeramics Tube: Grounding Devices (Grounding Rings Plate Type, or Grounding Rings Electrode Type), Union Joint /CH NOTE: This item is a replacement of AXG010-CAKF2BA1-AP114B-1JA12/SCT/L3/M01
