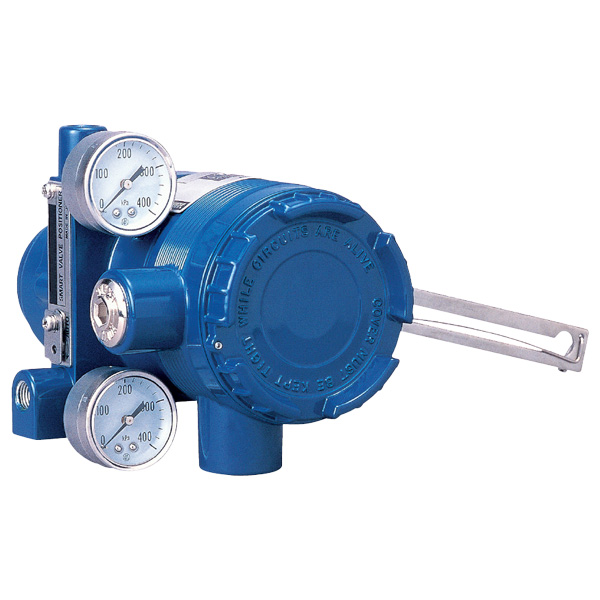

AVP307-YSD5B-XDXX-X | Azbil Smart Valve Positioner 300 Series Type AVP307

Ordering Information Model AVP307 Analog signal (4 to 20 mA DC) with HART Communication + Travel Transmission Main unit model number Y ATEX FlameproofAir pipes, conduit connections: (1/4NPT,1/2NPT) Finish S Standard (Baked Acylic) Positioner action D Direct Action (standard) - Air pressure increases with Control signal increase Supply air pressure type 5 450 < Ps « 700 kPaø pressure gauge scale, Max regulator setting: 1000 kPa, 700 kPa Pressure units B (kgf/cm²)(1) Regulator with filter X Without regulator Mounting bracket material (mounting plate/bolts) D SUS304 / SUS304 Mounting bracket for attachment to actuator XX No mounting plate Option X None Items in parentless are for overseas use. As such, they cannot be used in Japan.
