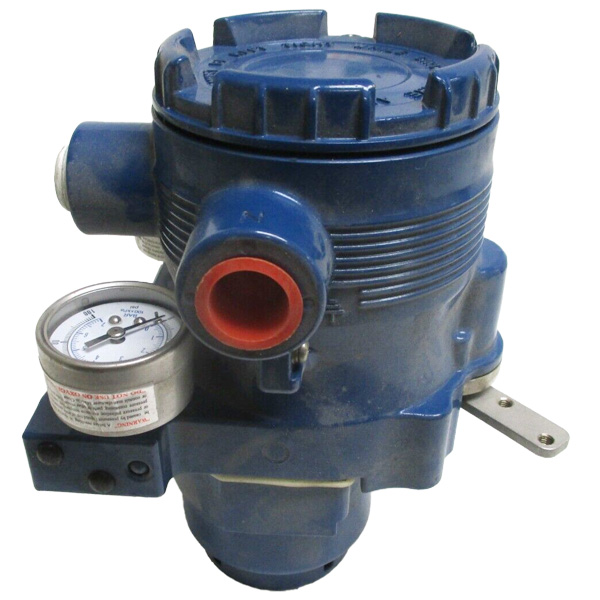

AVP302-PSD3B-2DYT-W | Azbil Smart Valve Positioner 300 Series AVP302

Ordering Information Model AVP302 Analog signal (4 to 20 mA DC) HART protocol Main unit model number P Water proof(1/4 NPT, 1/2 NPT) Finish S Standard (Baked Acylic) Positioner action(1) D Direct Action (standard) - Air pressure increases with Control signal increase Supply air pressure type 3 300 < Ps < 400 kPa(400 kPa, 400 kPa) Pressure units B (kgf/cm²)(2) Regulator with filter 2 With model KZ03 regulator (with mounting plate for separate installation) Mounting bracket material (mounting plate/bolts) D SUS304 / SUS304 Mounting bracket for attachment to actuator(3) YT HA2, HA3, HL2, HL3 Option W Double-acting reversing relay(4) When the input signal (power) is shut off, select direct action to make the output air pressure of this device zero, and reverse action to make the output at the maximum air pressure (supply air pressure). Positioner action differs from actuator and control valve action, so be careful in selecting the positioner's action.If double acting actuator are using, not available code "R".Items in parentheless are for overseas use. As such, they cannot be used is Japan.Accuracy differs depending on the actuator stroke (see Table 1).If reverse action is selected for positioner action, this option cannot be selected.
