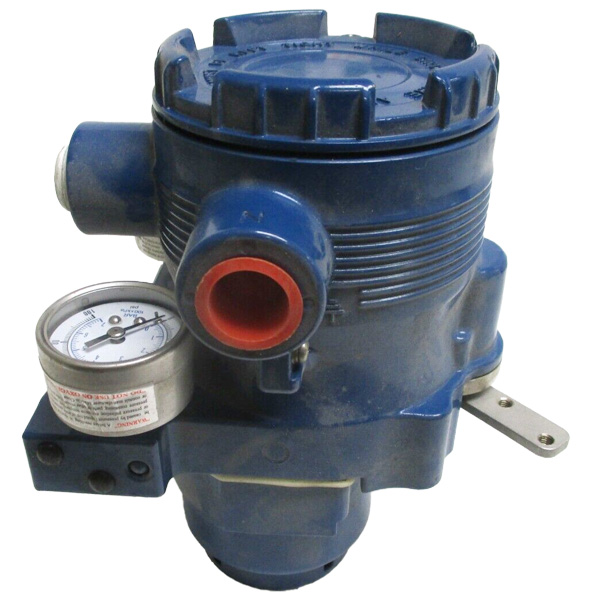

AVP302-MSD4B-1XXX-W

Ordering Information Model AVP302 Analog signal (4 to 20 mA DC) HART protocol Main unit model number M FM Intrinsically Safe(1/4 NPT, 1/2 NPT) Finish S Standard (Baked Acylic) Positioner action(1) D Direct Action (standard) - Air pressure increases with Control signal increase Supply air pressure type 4 400 ‹ Ps « 450 kPa(600 kPa, 700 kPa) Pressure units B (kgf/cm²)(2) Regulator with filter 1 With model KZ03 regulator (attached to main unit)(3) Mounting bracket material (mounting plate/bolts) X No mounting plate Mounting bracket for attachment to actuator(3) XX No mounting plate Option W Double-acting reversing relay(4) When the input signal (power) is shut off, select direct action to make the output air pressure of this device zero, and reverse action to make the output at the maximum air pressure (supply air pressure). Positioner action differs from actuator and control valve action, so be careful in selecting the positioner's action.If double acting actuator are using, not available code "R".Items in parentheless are for overseas use. As such, they cannot be used is Japan.Select the code "1" or "A" only when the direction of drain of the pressure regulator with filter on the control valve is downward (ground).Accuracy differs depending on the actuator stroke (see Table 1).If reverse action is selected for positioner action, this option cannot be selected.
