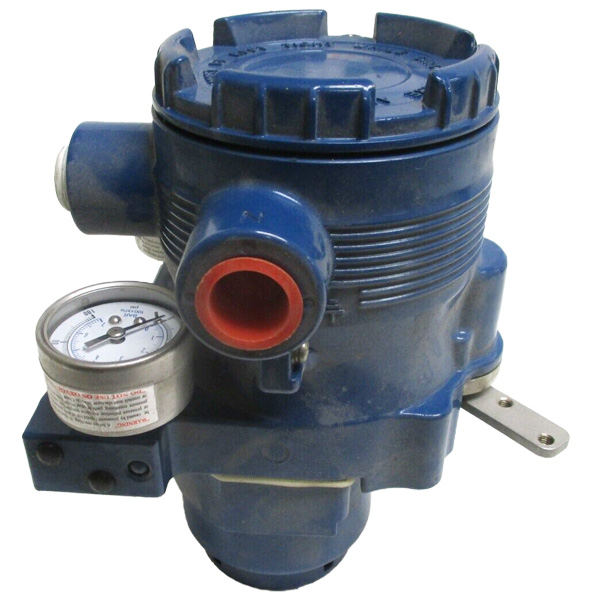

AVP302-MSD2A-1XXX-W | Azbil Smart Valve Positioner 300 Series AVP302

Ordering Information Model AVP302 Analog signal (4 to 20 mA DC) HART protocol Main unit model number M FM Intrinsically safeAir pipes: 1/4 NPT, Conduit connections: 1/2 NPT Finish S Standard (Baked Acylic) Positioner action(1) D Direct Action (standard) - Air pressure increases with Control signal increase Supply air pressure type 2 150 < Ps <= 300 kPaPressure gauge scale: 400 kPaMax regulator setting: 400 kPa Pressure units A kPa Regulator with filter 1 With model KZ03 regulator (attached to main unit)(2) Mounting bracket material (mounting plate/bolts) X No mounting plate Mounting bracket for attachment to actuator(3) XX No mounting plate Option W Double-acting reversing relay(4) When the input signal (power) is shut off, select direct action to make the output air pressure of this device zero, and reverse action to make the output at the maximum air pressure (supply air pressure). Positioner action differs from actuator and control valve action, so be careful in selecting the positioner's action.If double acting actuator are using, not available code "R".Select the code "1" or "A" only when the direction of drain of the pressure regulator with filter on the control valve is downward (ground).Accuracy differs depending on the actuator stroke (see Table 1).If reverse action is selected for positioner action, this option cannot be selected.
