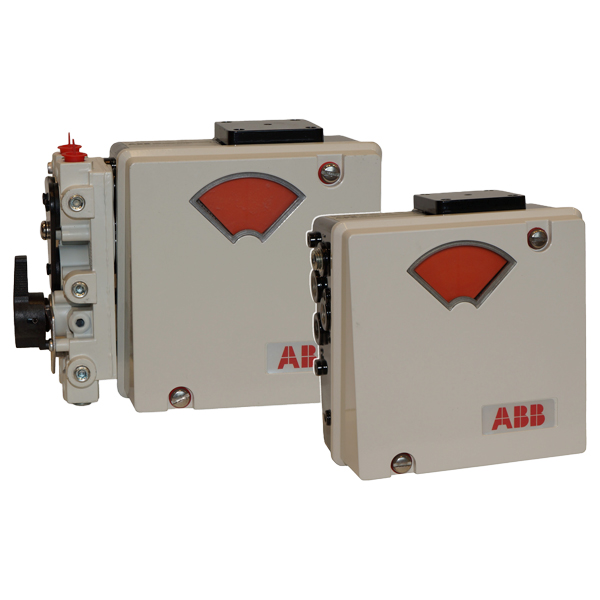

AV1123010 | ABB Pneumatic Positioner

Ordering Information Model AV1 Pneumatic Positioner Input signal 1 0.2 to 1 bar (3 to 15 psi), standard temperature range –40 to 82 °C (–40 to 180 °F) Stroke or rotary motion 2 25.4 to 101.6 mm (1.0 to 4.0 in) or 90° rotation Manifold / gage block 3 Gage block, gage ports only Position transmitter 0 No position transmitter Drive shaft 1 12.7 mm (0.500 in) square end (most common for 90° actuators) Options 0 No options
