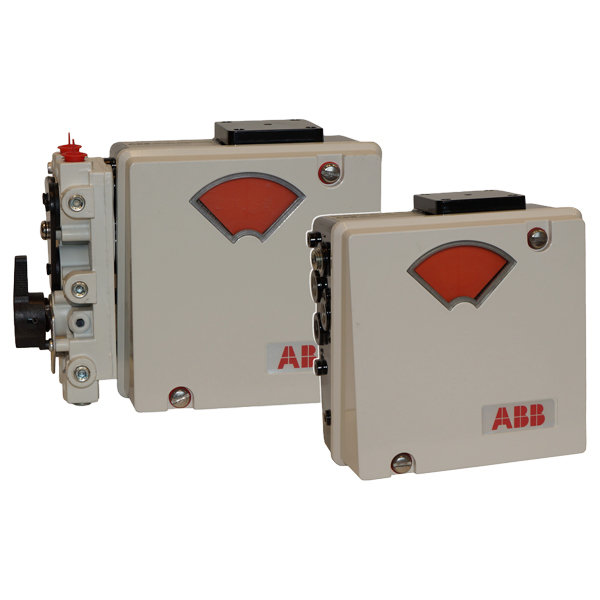

AV112120P | ABB Pneumatic Positioner

Ordering Information Model AV1 Pneumatic Positioner Input signal 1 0.2 to 1 bar (3 to 15 psi), standard temperature range –40 to 82 °C (–40 to 180 °F) Stroke or rotary motion 2 25.4 to 101.6 mm (1.0 to 4.0 in) or 90° rotation Manifold / gage block 1 Manifold with equalizing valve, filters and gage ports (see Notes 1 and 2) Position transmitter 2 4 to 20 mA output (see Note 2) Drive shaft 0 Standard with drive arm (for linear actuators) and UP3 / 4 / 5 / 6 Options P Performance series, high pneumatic gain Notes.Required for double acting actuators with manual override (for example, UP or AC actuators).Not available with input signal codes 5 and 6.
