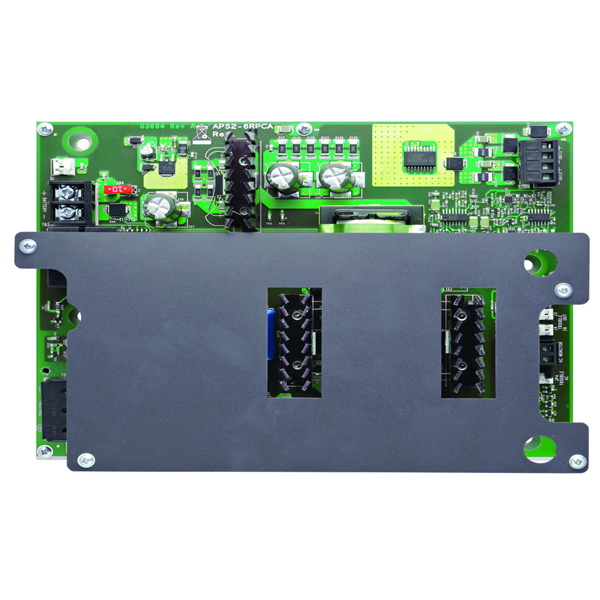

APS2-6RE | NOTIFIER by Honeywell Auxiliary Power Supply

GeneralThe APS2-6R is a state-of-the-art, 150 watt, switching auxiliary power supply providing 24 VDC of filtered DC power. The APS2-6R provides three 24 VDC output circuits, rated for 6.0 Amps in alarm and 4.0 Amps continuous. It is used for the operation of peripheral audible/visual devices (alarm signaling appliances) for the Onyx Series control panels.The APS2-6R can also be used with Legacy panels. Please refer to the APS2-6R manual for more information.FeaturesUL 864 Ninth Edition compliantLightweight, compact design120 or 220/240 VAC (@ 50/60 Hz) versionsOutput circuits with overload protectionBuilt-in “brown-out” circuitryDiagnostic trouble LEDPlug-in connector for in-cabinet applications and screw terminals for remote device applicationsTrouble supervision busShares battery and charger circuit with control panelPower-limited design, per UL requirementsAC Fail supervision and reporting with field-selectable delay per UL 864Heavy-duty clamp-type terminals accept up to 12 AWG (3.1 mm²) wireBattery voltage supervisionLow battery disconnectMounts in a standard CAB-3/XLS-ADT-CAB-4 Series cabinet.
