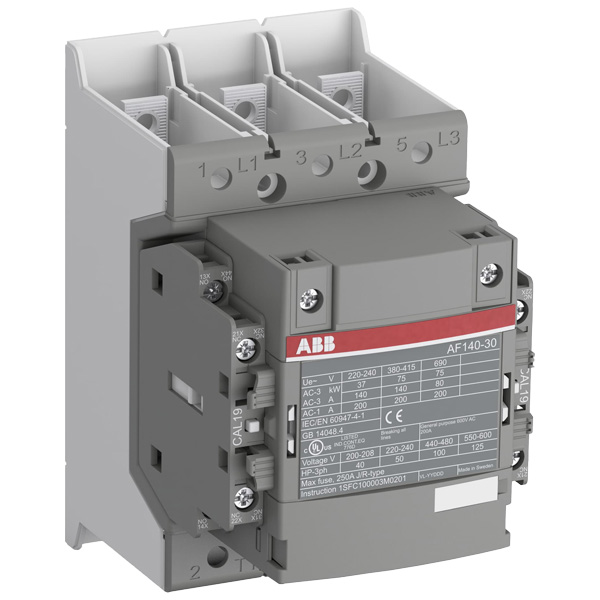

AF140-30-22B-13 | ABB AF Contactor AF140
Контактор 3-полюсный, 690 В, IEC или 600 В UL, с предварительно установленными дополнительными контактами и основной цепью, управляющий двигателями до 75 кВт / 400 В (AC-3) или 100 шт. / 480 В UL и переключающими электрические цепи до 200 А (AC-1) или 200 А UL общего применения.
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Factory Warranty | 12 Months |
| ID каталога | 105429 |
| Manufacturer | ABB |
| Model | AF Contactor AF140 |
| Part Number | AF140-30-22B-13Product ID: 1SFL447002R1322 |
| Shipping Weight | 3 Kg |
| Артикул | AF140-30-22B-13 |
Описание
Rated Control Voltage: 100-250 V 50/60 Hz and DCThe AF140-30-22B-13 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
