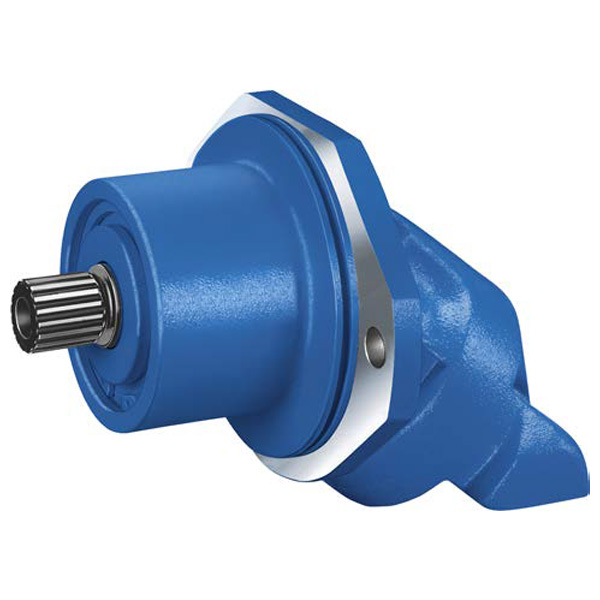

AA2FE355W6Z5 | Rexroth A2FE Series 6X Axial Piston Fixed Motor

Features:Space-saving construction due to recessed mounting flangeEasy to install, simply slide into the mechanical gearboxHigh power densityVery high total efficiencyHigh starting efficiencyOptional with integrated pressure relief valveOptional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valveBent-axis designHigh pressure motor for integration in mechanical gearboxesSize 28 … 355Nominal pressure up to 400 barMaximum pressure up 450 barOpen and closed circuitsHigh pressure motor for integration in mechanical gearboxesOpen and closed circuits Type Code Hydraulic fluid A Mineral oil and HFD. HFD for sizes 250 to 355 only in combination with long-life bearing “L“ (without code) Axial piston unit A2F Bent-axis design, fixed Operating mode E Motor, plug-in version Sizes (NG)(1) 355 Geometric displacement in cm³/U Direction of rotation W Viewed on drive shaft, bidirectional 6 Z 5 Sizes 45, 56, 63, 80, 90 see data sheet 91071 (A2FE series 70)
