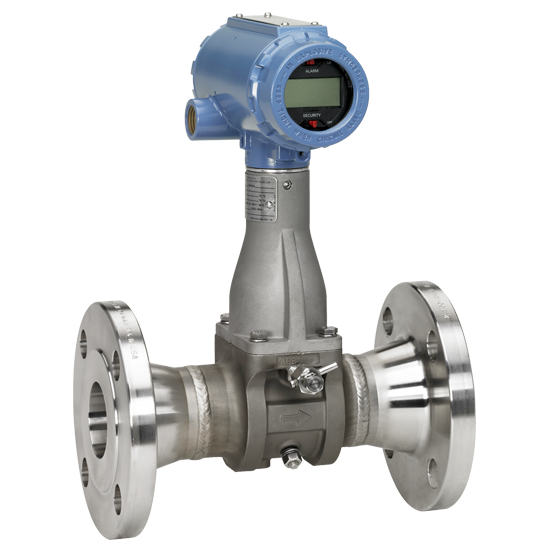

Ordering Information Model 8800D Vortex Flow Meter Meter style F Standard body style for use with flanged, welded, and threaded process connections Line size 040 4 inch (100 mm) Wetted materials S 316 wrought stainless and CF-3M cast stainless; Material of construction is 316/316L. Process connection style and pressure rating A1 ASME B16.5 RF Class 150 Sensor process temperature range E(1) Extended: –330 to +800 °F (–200 to +427 °C) Housing material and conduit entries 1 Aluminum housing, two ½–14 NPT conduit entries Outputs D 4–20 mA digital electronics (HART protocol) Calibration 1 Flow calibration Hazardous area approvals K1 ATEX Flameproof; Intrinsic Safety; Type n; Dust Display type M5 LCD indicator Quality certificate Q4Q8 Calibration Certificate per ISO 10474 3.1/EN 10204 3.1Material Traceability per ISO 10474 3.1/EN 10204 3.1 See Table 10 and Table 14 for the specific sensor process temperature range. Meters that include the PD option code are compliant with the EU Pressure Equipment Directive, PED, 2014/68/EU and the UK Pressure Equipment (Safety) Regulation, PER, Statutory Instrument, SI No. 1105.
