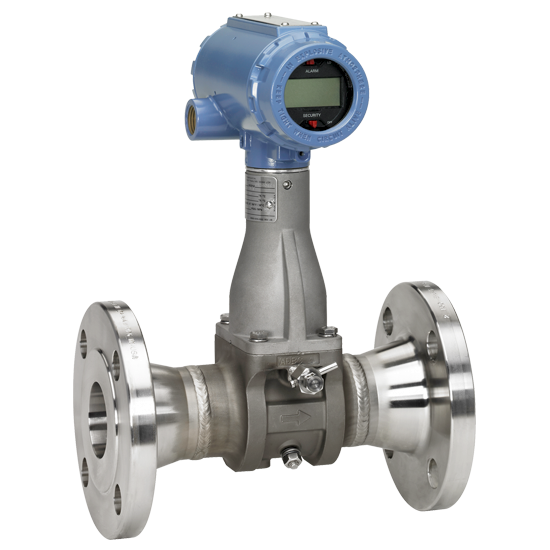

Ordering Information Model 8800D Vortex Flow Meter Meter style F Standard body style for use with flanged, welded, and threaded process connections Line size 010 1 inch (25 mm) Wetted materials S 316 wrought stainless and CF-3M cast stainless; Material of construction is 316/316L. Process connection style and pressure rating A6 ASME B16.5 RF Class 600 Sensor process temperature range N(1) Standard: –40 to +450 °F (–40 to +232 °C) Housing material and conduit entries 1 Aluminum housing, two ½–14 NPT conduit entries Outputs P 4–20 mA digital electronics (HART protocol) with scaled pulse Calibration 1 Flow calibration Hazardous area approvals I1 ATEX Intrinsic Safety ia; Intrinsic Safety ic Display type M5 LCD indicator Quality certificate Q4Q8 Calibration Certificate per ISO 10474 3.1/EN 10204 3.1Material Traceability per ISO 10474 3.1/EN 10204 3.1 See Table 10 and Table 14 for the specific sensor process temperature range. Meters that include the PD option code are compliant with the EU Pressure Equipment Directive, PED, 2014/68/EU and the UK Pressure Equipment (Safety) Regulation, PER, Statutory Instrument, SI No. 1105.
