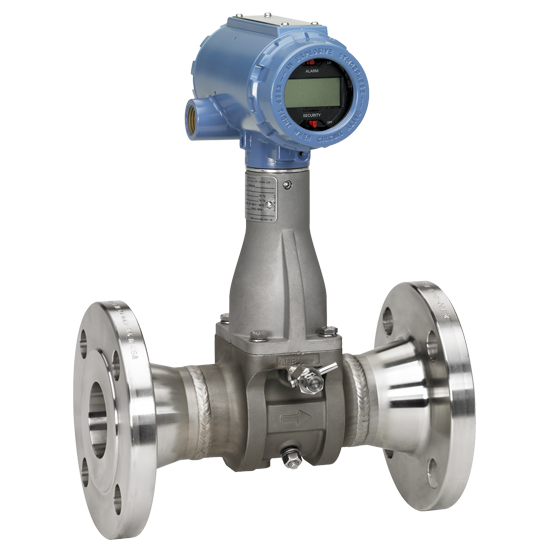

8800D - Vortex FlowmeterMeter style: F - Flanged styleLine size: 010 - 1-in. (25 mm)Wetted materials: S - 316 wrought stainless and CF-3M cast stainless. Note: Material of construction is 316/316L.Flange or alignment ring size: A1 - ASME B16.5 (ANSI) RF Class 150Sensor process temperature range: N - Standard: -40 to 450°F (-40 to 232°C)Conduit entry: 2 - M20 x 1.5 ? Aluminum HousingOutputs: D - 4-20 mA digital electronics (HART protocol)Calibration: I - Flow calibrationHazardous locations certif
Part Number
8800DF010SA1N2D1I1R10Q4Ordering Information
Shipping Weight
10 Kg
Артикул
8800DF010SA1N2D1I1R10Q4
Описание
Part Number: 8800DF010SA1N2D1I1R10Q4Ordering InformationModel: 8800D - Vortex FlowmeterMeter style: F - Flanged styleLine size: 010 - 1-in. (25 mm)Wetted materials: S - 316 wrought stainless and CF-3M cast stainless. Note: Material of construction is 316/316L.Flange or alignment ring size: A1 - ASME B16.5 (ANSI) RF Class 150Sensor process temperature range: N - Standard: -40 to 450°F (-40 to 232°C)Conduit entry: 2 - M20 x 1.5 ? Aluminum HousingOutputs: D - 4-20 mA digital electronics (HART protocol)Calibration: I - Flow calibrationHazardous locations certifications: I1 - ATEX Intrinsic Safety ia; Intrinsic Safety icOther options: R10 - Remote electronics with 10 ft (3,0 m) cableCertification options: Q4 - Certificate of Calibration - Consistent with ISO 10474 3.1B or EN 10204 3.1
