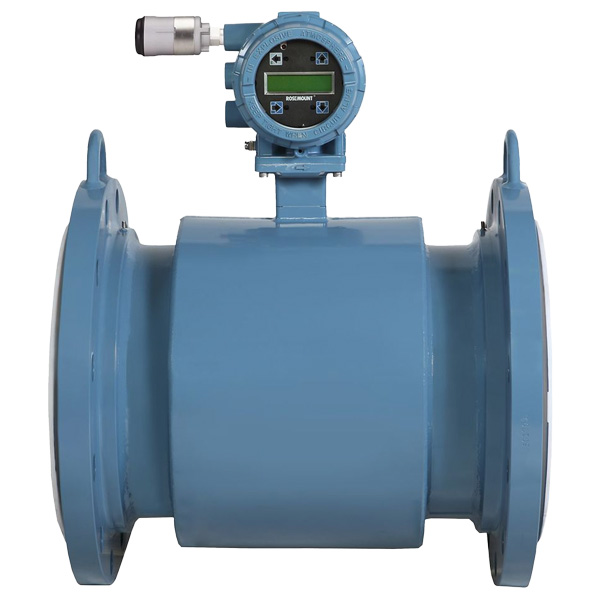

8750WDMT1A1FTSE010CA1M4Q4 | Rosemount 8750W Magnetic Flowmeter

Ordering Information Base Model 8750W Magnetic Flowmeter System (utility, water, and wastewater) Sensor design revision D Transmitter class M Revision 4 electronics Transmitter mount T Integral field mount Transmitter power 1 AC Power Supply (90–250 VAC, 50/60 Hz) Transmitter outputs A 4–20 mA output with digital HART protocol & scalable pulse output Conduit entries 1 Type: ½–14 NPTIntegral mount quantity: 2Remote mount quantity: 4 Sensor style F Flanged Lining material T(1) PTFE Electrode material S 316L stainless steel Electrode type E 2 Measurement electrodes plus 1 reference electrode – standard Line size 010 1-in. (25 mm) Flange type C Slip-on, raised-face, carbon steel Flange rating A1 ASME B16.5, Class 150 Display M4(2) LCD with Local Operator Interface Quality certificates Q4 Calibration certificate per ISO 10474 3.1/EN 10204 3.1 Available in ½ - to 36-in. (15 mm to 900 mm) line sizes.Not available with FOUNDATION Fieldbus (output code F).
