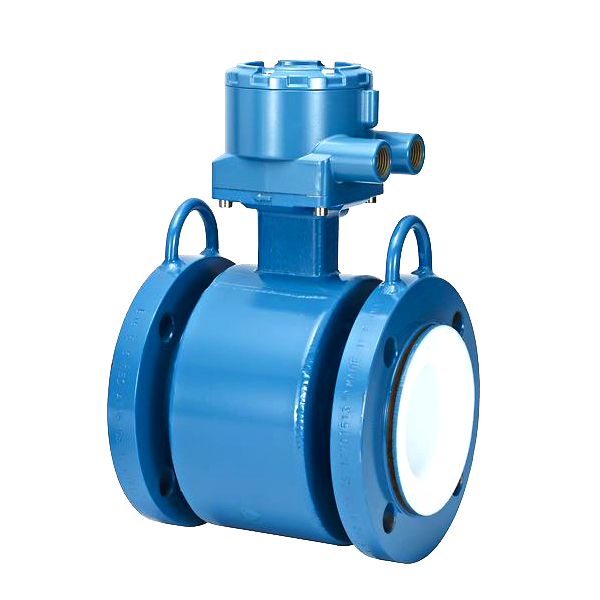

8705TSE040C1M0Q4 | Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Ordering Information Model 8705 Magnetic Flanged Flowmeter Sensor Lining material T PTFE Electrode material S 316L SST Electrode type(1) E 2 Measurement Electrodes - Standard Liner availability 040 4-in. (100 mm) Flange type and material C Slip-on, Raised-face, Carbon steel Flange rating 1 ASME B16.5, Class 150 [½ in. to 24 in. (15 mm to 600 mm)] AWWA, Class D [30 in. and 36 in. (750 mm and 900 mm)] Housing configuration(2) M0 Sealed, welded housing Quality certificatesQ4 Calibration Certificate per ISO 10474 3.1/EN 10204 3.1 Reference electrode is not available in line sizes ½ in. to 6 in. (15 mm to 150 mm) with M2/M4 coil housing.Consult Technical Support for use with ordinary locations.
