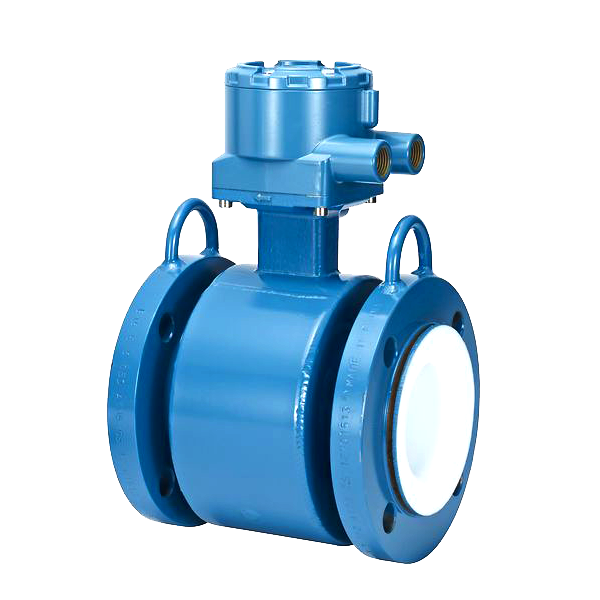

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Ordering Information Model 8705 Magnetic Flanged Flowmeter Sensor Lining material T(1) PTFE Electrode material H Nickel Alloy 276 (UNS N10276) Electrode type A 2 Measurement Electrodes - Standard Line sizes 040 4-in. (100 mm) Flange type and material(2) S Slip-On, Raised-Face, 304/304L Stainless Steel Flange rating(2) 1 ASME B16.5, Class 150 (1 /2 thru 24-in.); AWWA Class D (30 and 36-in.) Electrode housing configuration W0 Standard: Sealed, Welded Housing Factory Mutual (FM)N5 FM Non-Incendive with Intrinsically Safe Electrodes, Class I Div 2; DIP Optional grounding rings(3) G1 (2) 316L SST Ground Rings Quality certificatesQ4 Calibration Certificate per ISO 10474 3.1B/EN 10204 3.1 PTFE available in line sizes:1/2-in. to 24-in. (15 mm to 600 mm) ASME Class 150, Class 300, Class 600 (derated), and EN 1092-130-in. and 36-in. (750 mm and 900 mm) AWWA Class D, ASME Class 150, and MSS SP44 Class 150.Refer to Table 9 and Table 10 for standard flange offering.Grounding Rings and Lining Protectors provide the same fluid grounding function.
