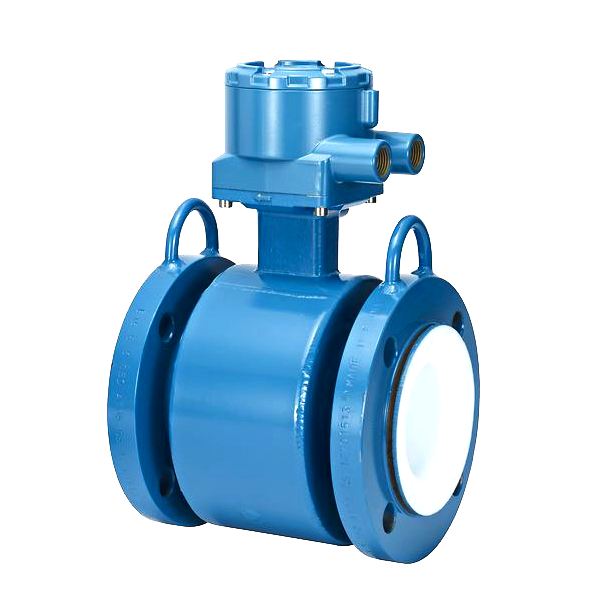

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Ordering Information Model 8705 Magnetic Flanged Flowmeter Sensor Lining material A(1) PFA Electrode material S Standard: 316L Stainless Steel Electrode type E Standard: 2 Measurement Electrodes plus 1 Reference Electrode 020 Line sizes: 2-in. (50 mm) (8705 only) Flange type and material(2) C Slip-On, Raised-Face, Carbon Steel Flange rating(2) 1 ASME B16.5, Class 150 (1 /2 thru 24-in.); AWWA Class D (30 and 36-in.) Electrode housing configuration W0 Standard: Sealed, Welded Housing NA Miscellaneous options B3 Integral Mount with 8732EM Transmitter CertificationsPD European Pressure Equipment Directive Certification (PED, per 97/23/EC) Certificates Q4Q8 Calibration Certificate per ISO 10474 3.1B/ EN 10204 3.1Material Traceability per ISO 10474 3.1B / EN 10204 3.1 Neoprene and Linatex available in line sizes:1-in. to 24-in. (25 mm to 600 mm) ASME Class 150, Class 300, Class 600 (fully rated) and EN 1092-130-in. and 36-in. (750 mm and 900 mm) AWWA Class D, ASME Class 150, and MSS SP44 Class 1501-in. to 12-in. (25 mm to 300 mm) ASME Class 9001 1/2-in. to 12-in. (25 mm to 300 mm) ASME Class 15001 1/2-in. to 8-in. (25 mm to 200 mm) ASME Class 2500.Refer to Table 9 and Table 10 for standard flange offering.
