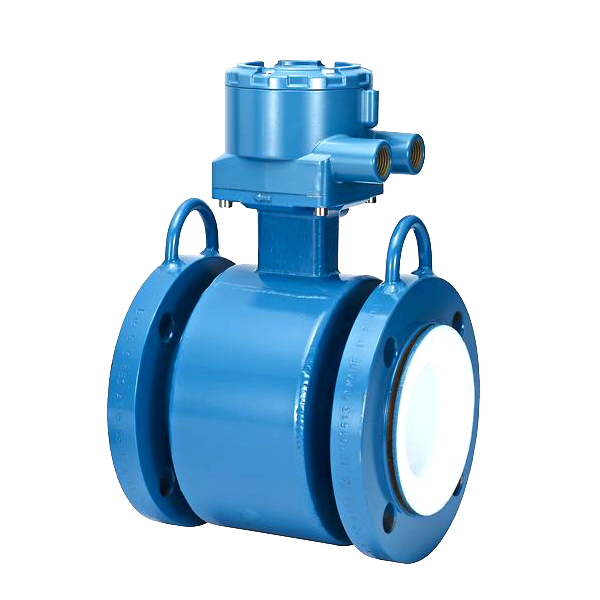

8705AHA030C1M0N5B3 | Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Ordering Information Model 8705 Magnetic Flanged Flowmeter Sensor Lining material A(1) PFA Electrode material H Nickel Alloy 276 (UNS N10276) Electrode type A 2 Measurement Electrodes - Standard 030 Line sizes: 3-in. (80 mm) Flange type and material(2) C Slip-On, Raised-Face, Carbon Steel Flange rating(2) 1 ASME B16.5, Class 150 (1 /2 thru 24-in.); AWWA Class D (30 and 36-in.) Coil housing configuration M0(3) Sealed, Welded Housing with Field Replaceable Terminal Block/Socket Module Factory Mutual (FM)N5 FM Non-Incendive with Intrinsically Safe Electrodes, Class I Div 2; DIP Miscellaneous options B3 Integral Mount with 8732EM Transmitter Model 8732EM Magnetic Flow Transmitter – Field Mount Transmitter Mount T Integral Mount Transmitter Power Supply 2 DC (12 - 42 Vdc) Outputs A 4 - 20 mA with digital HART Protocol & Scalable Pulse Output Conduit entries 1 ½-14 NPT female N5 Display Option M4 LOI Neoprene and Linatex available in line sizes:1-in. to 24-in. (25 mm to 600 mm) ASME Class 150, Class 300, Class 600 (fully rated) and EN 1092-130-in. and 36-in. (750 mm and 900 mm) AWWA Class D, ASME Class 150, and MSS SP44 Class 1501-in. to 12-in. (25 mm to 300 mm) ASME Class 9001 1/2-in. to 12-in. (25 mm to 300 mm) ASME Class 15001 1/2-in. to 8-in. (25 mm to 200 mm) ASME Class 2500.Refer to Table 9 and Table 10 for standard flange offering.Consult Technical Support for use with Ordinary Locations.
