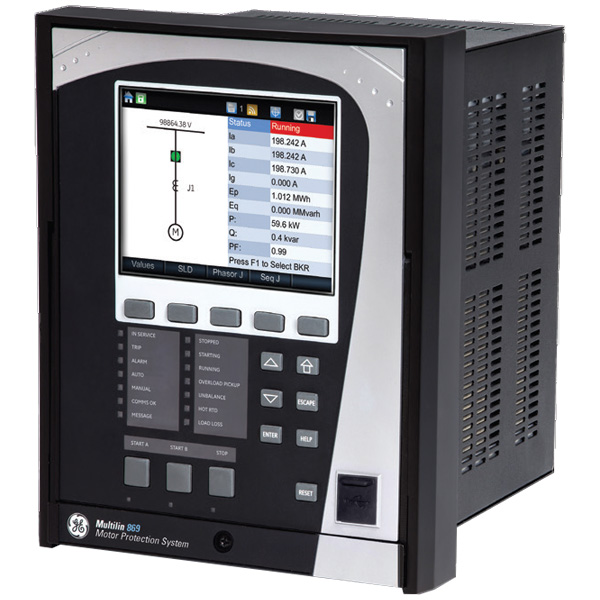

869-E-P5-P5-B5-H-S-S-A-L-A-M-M-P-F-A-SE-N-N-B-N-1 | Multilin 869 Motor Protection Relay

Ordering Information Base Unit 869 Motor Protection Relay (Standard : English Language; High Voltage PS, Graphical Control Panel) Language E English Phase Currents - Slot J Bank 1/2 P5 5A three phase current inputs (J1) Phase Currents - Slot K Bank 2/2 P5 5A three phase current inputs Ground Currents B5 5A ground + CBCT (included with current protection M option only) Power Supply H 110 - 250 V dc/110 - 230 Vac Slot B - LV I/O S Slot C - LV I/O S Slot F - HV I/O A2 Form A (Vmon), 3 Form C, 7 Digital Inputs (Low / High voltage, Int/Ext supply) Slot G - HV I/O L Slot H - HV I/O A M Current Protection M Standard = Basic + 67P, 67N, 87 (2nd CT Bank required for 87) Voltage Monitoring & Protection P Advanced = Standard + 32, 55, 59_2 Control F Standard = Basic + Flexlogic, 50BF, Trip Bus Monitoring A Communications SE Standard = USB, 1xRS485 : Modbus RTU, DNP3.0, IEC60870-5-103 + 1xEthernet Copper: Modbus TCP Fiber Optic Connector N None Wireless Communication N None Security B Basic N 1
