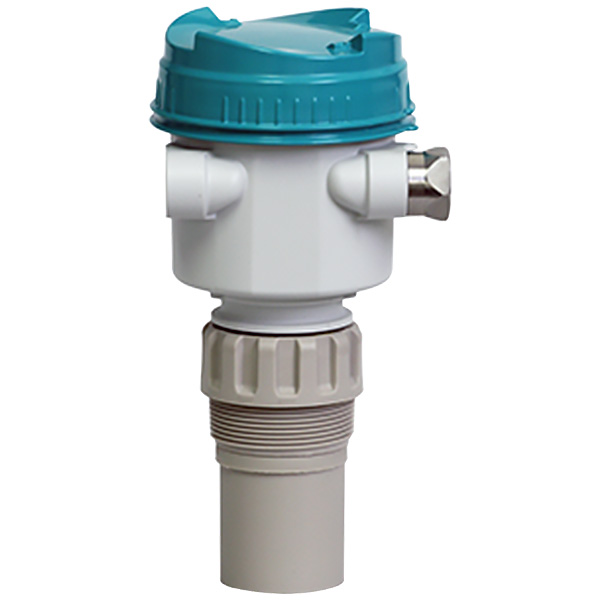

7ML5110-1DD07-4AF3
Универсальный уровень-трансмиттер для измерения уровня, объема и расхода жидкостей, slurries и сыпучих материалов до 12 м (40 футов).
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|---|---|---|---|
| склад-3 | 1 051,20 USD | 497 838 ₸ | 1 | 30–45 дней |
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Factory Warranty | 12 Months |
| ID каталога | 103611 |
| Manufacturer | Siemens |
| Model | SITRANS Probe LU240 Ultrasonic Level Transmitter |
| Part Number | 7ML5110-1DD07-4AF3 |
| Shipping Weight | 3 Kg |
| Артикул | 7ML5110-1DD07-4AF3 |
Описание
SITRANS Probe LU240 Ultrasonic level transmitter ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft). . Communications: HART (4 ... 20 mA) level, volume, volume flow Ingress protection: IP66, IP68, TYPE 4X, 6 Measurement range/ wetted parts: 200 ... 6000 mm (7.87 ... 236.22 inch), PVDF Copolymer Process connection: 2" NPT [(Taper), ASME B1.20.1] . Non wetted parts: Plastic (PBT/PC material) Enclosure Type of protection: Ordinary Locations/General Purpose (Non-Ex), CCSAUS, CE, UKCA, KC, RCM, EAC Electrical connections/ cable entries: 2 x M20 x 1.5 (one general purpose Polyamide cable gland and one Polyamide blocking plug provided) Local HMI: With display (clear lid of PC material)
