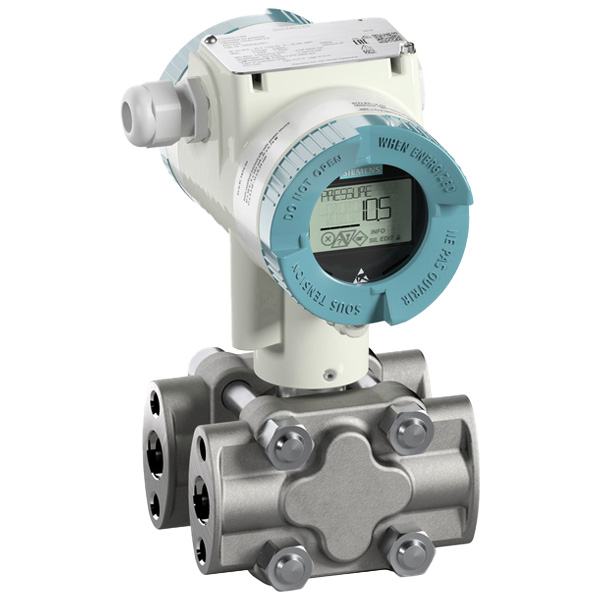

7MF0360-1GV01-5BF1-Z C20+E20 | Siemens SITRANS P320 Pressure Transmitter for Level

Ordering Information Model 7MF063 SITRANS P320 Pressure Transmitter for Level Communication 0 HART, 4 ... 20 mA Measuring cell filling 1 Silicone oil Maximum measuring span G 250 mbar (100.5 inH2O) Process connection V Version for diaphragm seal with fastening thread 7/16-20 UNF (IEC 61518):Remote seal 7MF0814 must be ordered separately. Wetted parts materials: Process connection, seal diaphragm 0 Stainless steel 316L/1.4404, stainless steel 316L/1.4404, process flange stainless steel 316/1.4408 Non-wetted parts materials 1 Die-cast aluminum Enclosure 5 Dual chamber device Type of protection B Intrinsic safety Electrical connections/cable entries F Thread for cable gland: Cable gland must be ordered separately as option (Axx)• 2 x M20 x 1.5 Local operation/display 1 With display (lid closed) Z Certificates for functional safety C20 Functional Safety (IEC 61508) - SIL2/3 Explosion protection approvals E20 ATEX (Europe)
