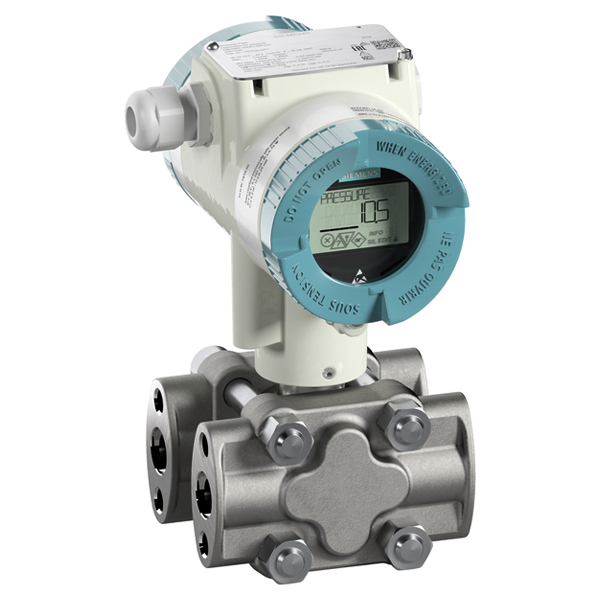

7MF0340-1PL01-5AM2-Z A00+E01+H01+K84+C11+Y01+Y15 | Siemens SITRANS P320 Pressure Transmitter

Part Number: 7MF0340-1PL01-5AM2-Z A00+E01+H01+K84+C11+Y01+Y15Model: SITRANS P320 Pressure TransmitterManufacturer: SiemensSITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 250 mbar (100.5 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x 1/2-14 NPT With display (closed lid) Cable gland attached, plastic Quality inspection certificate - 5 point factory calibration (IEC 60770-2) General approval without Ex approval: World (CE, RCM, EAC, FM, CSA, KCC) Mounting bracket, stainless steel 1.4301/304 Valve 1/4-18 NPT, material same as process flanges Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. ...) Example: -0.5 ... 10.5 psi Location designation (Tag) (stainless steel plate. device parameters. max. 32 characters)NOTE: Replacement for 7MF4433-1GA22-1AC6-Z A01+A40+B11+C11+Y01+Y015
