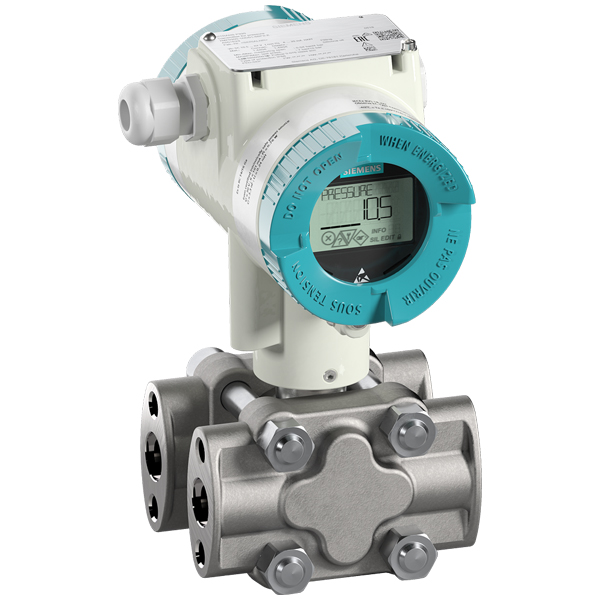

7MF0340-1HL61-5AM2-Z A00+B20+E01+K02+K83+K84+Y15 | Siemens SITRANS P320 Pressure Transmitter

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 600 mbar (241.1 inH²O) Oval flange, fastening thread: M10 (PN160), M12 (PN420) Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland attached, plastic General approval without Ex approval: World (CE, RCM) except: EAC, FM, CSA, KCC Mounting bracket, stainless steel 1.4301/304 Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. ...) Example: -0.5 ... 10.5 psi Characteristic curve square root: (VSLN2. MSLN2). example: VSLN2 Display: scaling with standard units (m3/s. l/s. m. inch. ...). example: 1 ... 5 m3/s
