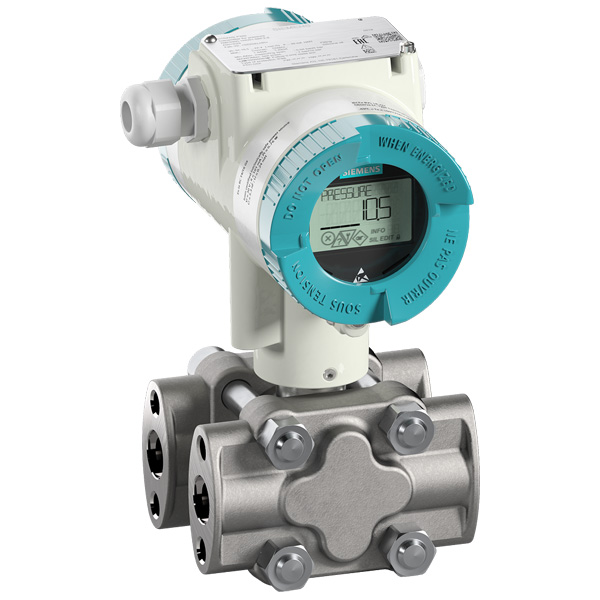

7MF0340-1GL01-5AM2-Z A00+E00+Y01 | Siemens SITRANS P320 Pressure Transmitter

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 250 mbar (100.5 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x 1/2-14 NPT With display (lid with glass window) Cable gland and sealing plug attached, plastic General approval without Ex approval: World (CE, UKCA, RCM) except: CSA, EAC, FM, KC Measuring range setting: Lower range value (max. 5 characters), Upper range value (max. 5 characters), Unit (mbar, bar, kPa, MPa, psi, ...) Example: -0.5 ... 10.5 psi (stainless steel plate)
