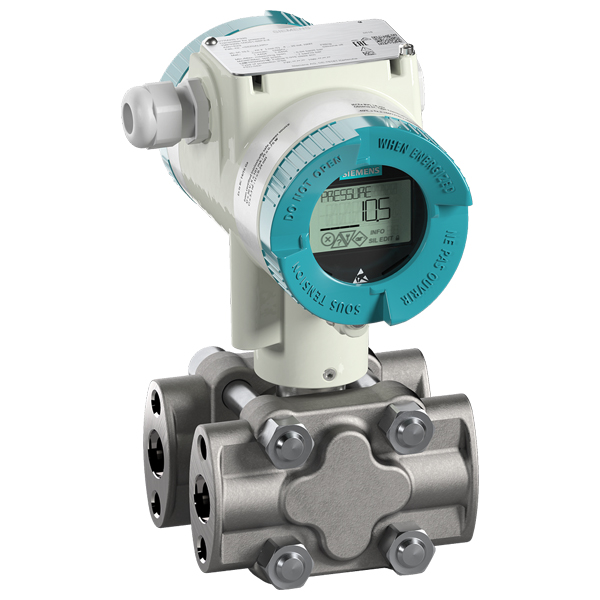

7MF0320-1FE01-5MM2-Z A01+B11+E20+Y2 | Siemens SITRANS P320 Pressure Transmitter

SITRANS P320 Pressure transmitter Absolute pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 250 mbar (3.6 psi) Female thread 1/2-14 NPT Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device Dust ignition proof zone 20/21/22 (DIP), increased safety zone 2 2 x 1/2-14 NPT With display (lid with glass window) Cable gland attached, metal Labeling type plate German - bar Quality inspection certificate - 5 point factory calibration (IEC 60770-2) Ex plate made of stainless steel 1.4404/316L ATEX (Europe) Mounting bracket, electrogalvanised steel Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. ...) Example: -0.5 ... 10.5 psi Display: (pressure. % of range). pressure reference (none. absolute. gauge). example: pressure gauge
