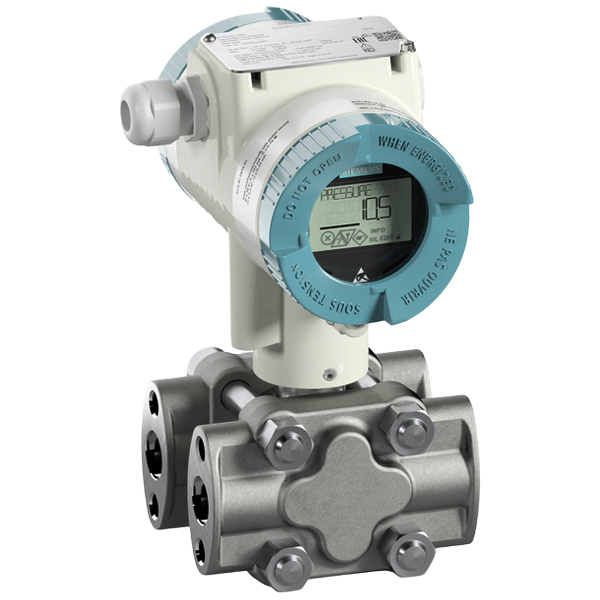

7MF0300-1QE01-5BF2-Z A00+H02+C11+Y01+Y15+Y21+E20 | Siemens SITRANS P320 Pressure Transmitter

Part Number: 7MF0300-1QE01-5BF2-Z A00+H02+C11+Y01+Y15+Y21+E20Model: SITRANS P320 Pressure TransmitterManufacturer: SiemensSITRANS P320 Pressure transmitter Gauge pressure HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 16 bar (232 psi) Female thread 1/2-14 NPT Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device Intrinsic safety 2 x M20 x 1.5 With display (lid with glass window) Cable gland attached, plastic Quality inspection certificate - 5 point factory calibration (IEC 60770-2) ATEX (Europe) Mounting bracket, stainless steel 1.4301/304 Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. ...) Example: -0.5 ... 10.5 psi Location designation (Tag) (stainless steel plate. device parameters. max. 32 characters) Display: (pressure. % of range). pressure reference (none. absolute. gauge). example: pressure gauge
