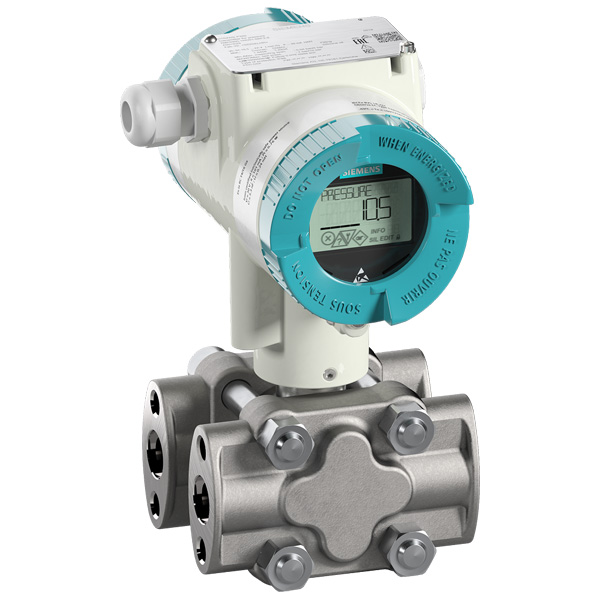

7MF0300-1NK01-5BF2-Z E20+M30 | Siemens SITRANS P320 Gauge Pressure Transmitter
Гauge pressure transmitter SITRANS P320 for 0 HART, 4...20 mA, measuring cell filling 1, silicone oil, maximum measuring span N 4000 mbar (58 psi), process connection K, flush-mounted diaphragm, wetted parts materials: process connection, seal diaphragm 0 stainless steel 316L/1.4404, non-wetted parts materials 1 die-cast aluminum, enclosure 5, dual chamber device, type of protection B, intrinsic safety electrical connections/cable entries F thread for cable gland 2 x M20 x 1.5, local operation/display 2 with display (cover with glass pane) -Z, explosion protection approvals E20ATEX (Europe), flanges according to DIN EN 1092-1 form B1 and ASME standard B16.5 M30 ASME B16.5
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Factory Warranty | 12 Months |
| ID каталога | 105054 |
| Model | SITRANS P320 Gauge Pressure TransmitterBrand: Siemens |
| Part Number | 7MF0300-1NK01-5BF2-Z E20+M30 |
| Shipping Weight | 8 Kg |
| Артикул | 7MF0300-1NK01-5BF2-Z E20+M30 |
Описание
Ordering Information Model 7MF030 SITRANS P320 Pressure transmitters for gauge pressure (pressure series) 0 HART, 4 ... 20 mA Measuring cell filling 1 Silicone oil Maximum measuring span N 4000 mbar (58 psi) Process connection K Flush-mounted diaphragm Wetted parts materials: Process connection, seal diaphragm 0 Stainless steel 316L/1.4404, stainless steel 316L/1.4404 Non-wetted parts materials 1 Die-cast aluminum Enclosure 5 Dual chamber device Type of protection B Intrinsic safety Electrical connections/cable entries F Thread for cable gland2 x M20 x 1.5 Local operation/display 2 With display (cover with glass pane) -Z Explosion protection approvals E20ATEX (Europe) Flanges according to DIN EN 1092-1 Form B1 and ASME standard B16.5 M30 ASME B16.5• 1" Class 150 RF
