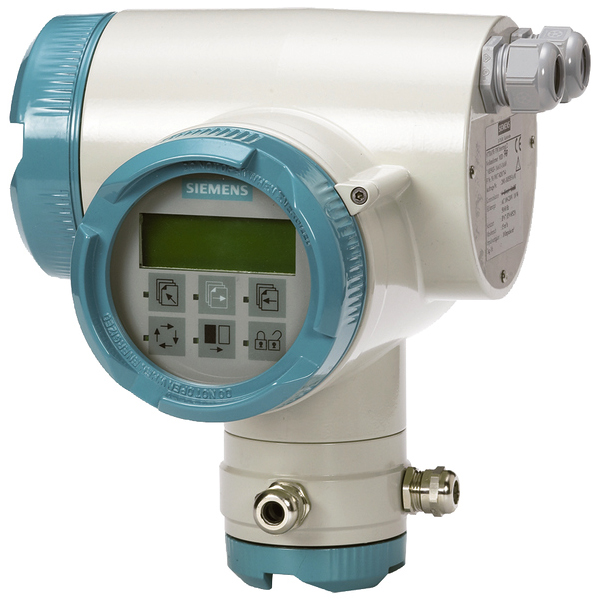

7ME6310-4HC23-2CF1-Z Y17 | Siemens Remote Transmitter

SITRANS FM MAG 3100 Full-bore electromagnetic flow sensor, flanged, diameter DN 15 to DN 2000 (1/2" to 78"). Suitable for volume flow measurement of liquids (conductive), main applications in process industry, chemical industry, steel industry, mining, utility, power generation and distribution, O&G/HPI. . DN150, 6 Inch EN1092-1, PN16 Stainless steel flanges AISI 304/1.4301, corrosion-resistant coating of category C4 PTFE Hastelloy C276 / 2.4819 (PFA: Hastelloy C22/2.4602) MAG 6000 Industry std., die cast aluminium enclosure, painted 18 - 90V DC, 115 - 230V AC FM/CSA Class 1 Div 2 PROFIBUS PA PROFILE 3 Metric Polyamid terminal box or 6000 I compact. Tag (device parameter, max. 20 characters), plate, stainless steel 304/1.4301
