Промышленное оборудование

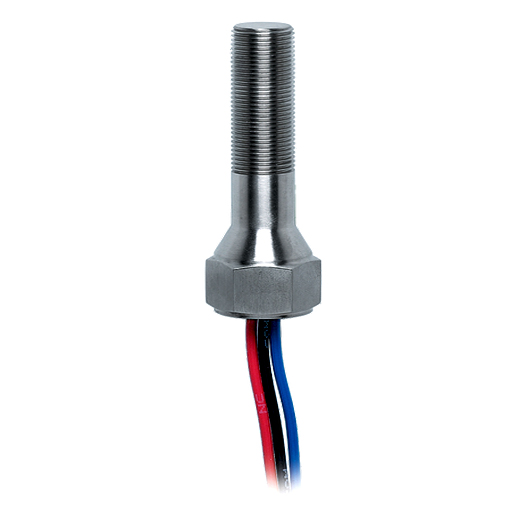

73-13569-B3 | GO Switch Leverless Limit Switches

Артикул: QT-40165
от 290 974 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

Estimated Lead Time8 - 10 Weeks
ID каталога43982
ManufacturerGO SwitchSpecificationsModel: GO Switch Model 73- 5/8" x 3-5/8" long; 5/8"-18 UNF x 1-7/8" threads; 1/2" NPT conduit outletContact Form: SPDT (Form C) - 4A@120VAC / 3A@24VDCSensing Range: Approx 2.5mm (.100") end sensingOutlet Position: Bottom of enclosureEnclosure Material: 316 stainless steel (rated 2,000 PSI)Approvals: ATEX Zone 1 Eex d IIC; II 2 G; T6Wiring Options: Hi-Temp - 18 gauge - Peek insulated - 914mm (36") (max temperature 150° w/T Approval)Operating Temps*: -20 °C to 50 °C
ModelLeverless Limit Switches
Part Number73-13569-B3
Shipping Weight2 Kg
Артикул73-13569-B3

Описание

Part Number: 73-13569-B3Model: Leverless Limit SwitchesManufacturer: GO SwitchSpecificationsModel: GO Switch Model 73- 5/8" x 3-5/8" long; 5/8"-18 UNF x 1-7/8" threads; 1/2" NPT conduit outletContact Form: SPDT (Form C) - 4A@120VAC / 3A@24VDCSensing Range: Approx 2.5mm (.100") end sensingOutlet Position: Bottom of enclosureEnclosure Material: 316 stainless steel (rated 2,000 PSI)Approvals: ATEX Zone 1 Eex d IIC; II 2 G; T6Wiring Options: Hi-Temp - 18 gauge - Peek insulated - 914mm (36") (max temperature 150° w/T Approval)Operating Temps*: -20 °C to 50 °C
