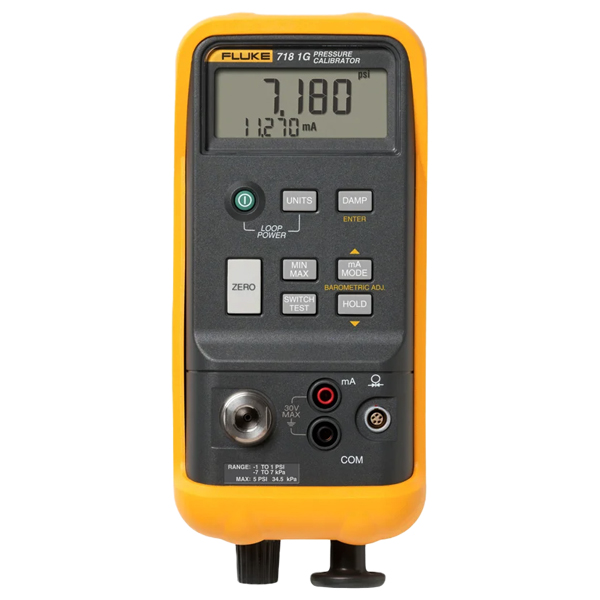

The Fluke 718 pressure calibrator family (4 models) provide a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique, easy to clean out access ports built into the pump protect the pump from fluids and provides the ability to servicethe pump without disassembly.Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure deviceIntegrated pump is easily cleaned when accidentally exposed to fluids:– reduces cost of ownership and repairs– service the pump in the fieldError % calculation for quicker pass/fail decision making in the fieldBest in class mA accuracy of 0.015 % for better measurement confidence and workload coverageMin/Max/Hold to capture changing measurementsSwitch test feature for quicker and more accurate pressure switch testingNew 1 and 300 PSI pressure ranges mean fewer extra tools required1, 30, 100 & 300 PSI ranges now availableGeneral SpecificationsMaximum voltage: 30 volts: Non-operatingTemperature: -40 °C to 60 °COperating temperature: -10 °C to 55° CRelative humidity: 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)Operating altitude: 3,000 m maxShock: 1 m drop testVibration: Random, 2 g, 5 Hz – 500 HzSafety: CSA C22.2 No. 1010.1: 1992EMC: EN50082-1: 1992 and EN55022: 1994 Class BSize/weight (717 with holster): 201 mm x 98 mm x 52 mm (7.93 in x 3.86 in x 2.06 in) 600 g (21 oz)Size/weight (718 with holster): 216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in) 992 g (35 oz)Power: 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718Battery Life: 4 to 20 hours typical, depending on functions usedWarranty: Three years (one year on pressure pump in Fluke 718)Display: LCD, 5 digit pressure and current simultaneousAccuracy: 0.05 %
