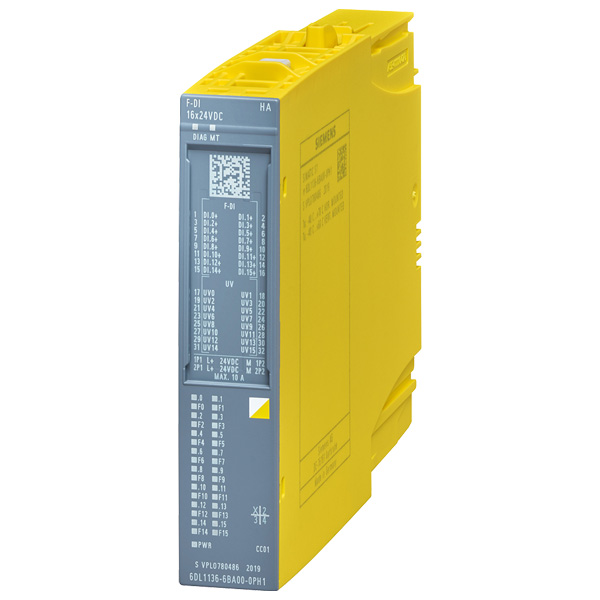

6DL1136-6BA00-0PH1 | Siemens SIMATIC ET 200SP HA Digital Input Module

Product OverviewThe Siemens 6DL1136-6BA00-0PH1 is a fail-safe digital input module from the SIMATIC ET 200SP HA distributed I/O system, engineered for high-availability process automation and safety-instrumented systems (SIS). Designated F-DI 16x24VDC HA, this module provides 16 fail-safe inputs (DI0 to DI15), rated SIL3, making it suitable for safety loops in oil & gas, chemical, power generation, and other process industries requiring both high availability and functional safety.Key Features 16 fail-safe digital inputs — channels can be combined in pairs for 1oo2 evaluation, and 1oo1 and 1oo2 evaluations can be mixed on the same module Safety integrity: Certified to SIL3 (IEC 61508) and up to PL e (ISO 13849-1) Flexible wiring: Compatible with terminal block types H1, M1 (color code CC01), plus N0, H0, M0 per the system manual Built-in diagnostics: Channel-level diagnostics and full I&M data support (I&M0–I&M3) for asset tracking and maintenance PROFINET IO connectivity for seamless integration into distributed control architectures Firmware-updatable for long-term supportabilityTechnical Specifications Supply voltage: DC 19.2–28.8 V Input current at signal "1": 2.5 mA Permissible input voltage range: -30 V to 30 V DC Sensor supply: can be powered internally or externally Engineering platforms: TIA Portal (from V21), STEP 7 (from V5.6 SP2 / V9.0 SP3 with S7 F Systems V6.3), PCS 7 (from V9.0 SP3)ApplicationsUsed in safety-instrumented systems requiring both redundancy and continuous process availability — emergency shutdown (ESD) systems, fire & gas detection, burner management, and other SIL3-rated safety loops within the ET 200SP HA high-availability I/O station.Why Choose the Siemens 6DL1136-6BA00-0PH1?The Siemens 6DL1136-6BA00-0PH1 provides a dedicated solution for fail-safe digital input applications in SIMATIC ET 200SP HA systems. Its 16-channel 24 V DC digital input architecture, safety certification capabilities, channel diagnostics and support for compatible terminal blocks make it suitable for demanding industrial automation and process safety applications.If you need a Siemens F-DI module for a SIMATIC ET 200SP HA system, the 6DL1136-6BA00-0PH1 is designed to provide safety-oriented digital input functionality for supported automation architectures.Order Siemens 6DL1136-6BA00-0PH1Looking for the Siemens 6DL1136-6BA00-0PH1 F-DI 16x24VDC HA module? Contact our team at [email protected] for current availability, pricing and delivery information. We can help you verify the correct Siemens part number and compatibility with your automation system before placing your order.
