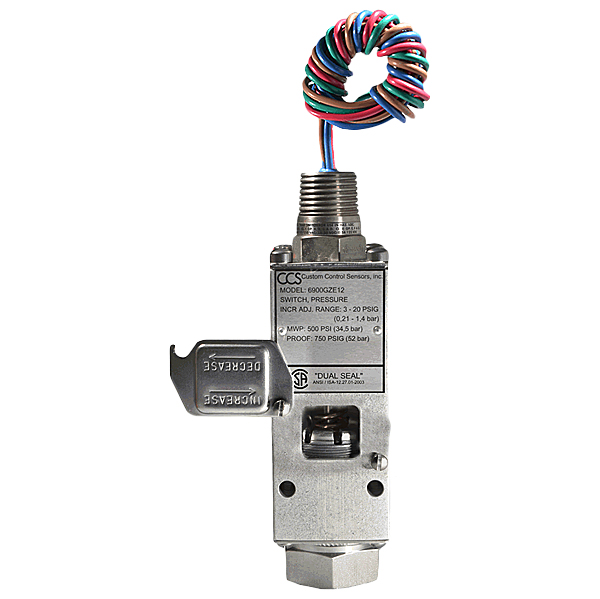

6900GZE20 | CCS Pressure Switch
Артикул: QT-36061
от 329 619 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Estimated Lead Time | 10 - 12 Weeks |
|---|---|
| ID каталога | 39832 |
| Part Number | 6900GZE20SpecificationsAdjustable Set Point Range:Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 barDecreasing: 225 to 925 psig, 1551.4 to 6377.6 kPa, 15.5 to 63.7 barDeadband: Approximately 75 psi, 517.11 kPa, 5.1 barSystem Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 barProof Pressure: 3000 psig, 20684.27 kPa, 207 barWetted Materials:Pressure Port: 1/2" FNPT 316 Stainless SteelDiaphragm: 316 Stainless SteelO-Ring: VitonRelay: SPDTUL, CSAExplosion Proof - Class 1, Div/Zone |
| Shipping Weight | 1 Kg |
| Артикул | 6900GZE20 |
Описание
Part Number: 6900GZE20SpecificationsAdjustable Set Point Range:Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 barDecreasing: 225 to 925 psig, 1551.4 to 6377.6 kPa, 15.5 to 63.7 barDeadband: Approximately 75 psi, 517.11 kPa, 5.1 barSystem Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 barProof Pressure: 3000 psig, 20684.27 kPa, 207 barWetted Materials:Pressure Port: 1/2" FNPT 316 Stainless SteelDiaphragm: 316 Stainless SteelO-Ring: VitonRelay: SPDTUL, CSAExplosion Proof - Class 1, Div/Zone 1, Groups A, B, C and DDual Seal - ANSI/ISA - 12.27.01-2003CRN, CE Mark, NACE
