Промышленное оборудование · CCS Dual-Snap 6900GZE Series

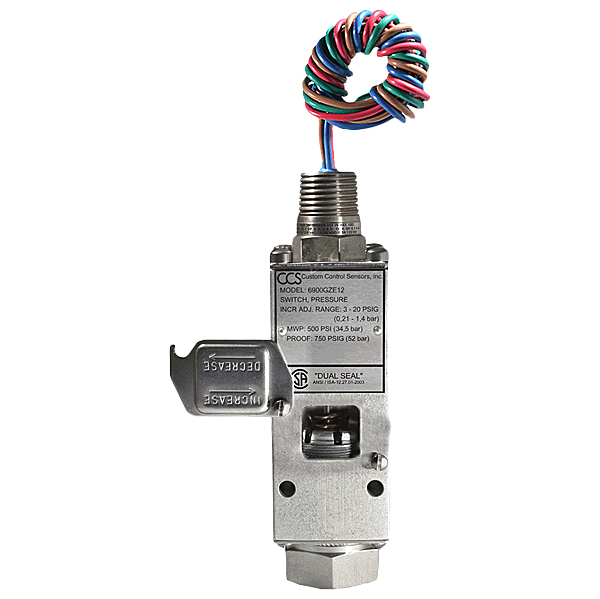

6900GZE16-7044 | CCS Dual-Snap 6900GZE Series Pressure Switch
Артикул: QT-92958
от 1 022 954 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 45 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 100973 |
| Model | Dual-Snap 6900GZE Series Pressure SwitchBrand: CCS |
| Part Number | 6900GZE16-7044 |
| Shipping Weight | 3 Kg |
| Артикул | 6900GZE16-7044 |
Описание
SpecificationsAdjustable Set Point Range:Increasing: 3 to 3400 psig, 0.21 to 234 barDecreasing: 1 to 3120 psig, 0.07 to 215 barDeadband: Approximately 2 to 280 psi, 0.14 to 19.3 barSystem Pressure (Maximum): 500 to 5000 psig, 34.5 to 344.74 barProof Pressure: 750 to 7500 psig, 51.7 to 517.11 barWetted Materials:Pressure Port: 1/2" - 14 FNPT 316 Stainless Steel Pressure PortDiaphragm: Stainless SteelO-Ring: VitonRelay: SPDT or DPDT7044: Monel Port & DiaphragmUL, CSA:Explosion Proof - Class 1, Div/Zone 1, Group A,B, C and DDual Seal - ANSI/ISA - 12.27.01 - 2003CRN, CE Mark, NACE, NEMA
