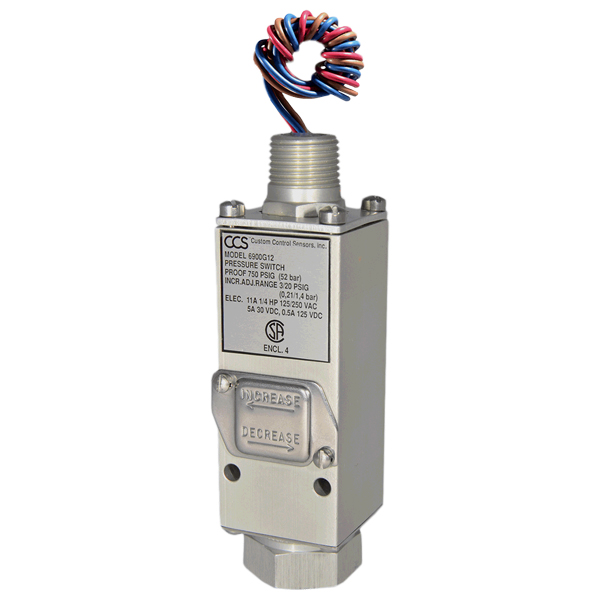

The general purpose 6900G Series is the most popular, all-around, all-aluminum gage pressure switch. It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.Adjustable Set Point Range:Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 barDecreasing: 1 to 3180 psig, 6.9 to 21,925.3 kPa, 0.07 to 219 barDeadband: Approximately 2 to 220 psi, 13.79 to 1516.8 kPa, 0.14 to 15.2 barSystem Pressure (Maximum): 5000 psig, 34,473.8 kPa, 345 barProof Pressure: 7500 psig, 51,710.7 kPa, 517 barWetted Materials:Pressure Port: 1/4"-18 Female NPT AluminumDiaphragm: PolyimideO-Ring: Buna NRelay: SPDT or DPDTCSA, CRN, CE Mark, General Purpose
