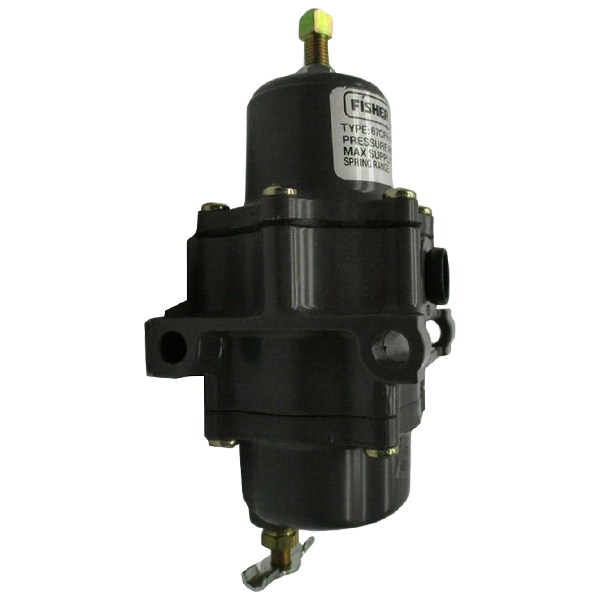

67CFSR | Fisher 67C Series Instrument Supply Regulator

SpecificationsType: Stainless steel with filter and internal reliefSpring Case Style: 1/4 NPTAdjusting Screw: Square head with closing capOutlet Pressure Range: 0 to 150 psig / 0 to 10.3 barDrain Valve (for Manual Drain Only): Stainless steelFixed Bleed: YesSmart Bleed Internal Check Valve Airset: YesSecond Outlet: Plugged with pipe plugRelief Performance: Low capacity for minor seat leakage only, other overpressure protection must be provided if inlet pressure can exceed the maximum pressure rating of downstream equipment or exceeds maximum outlet pressure rating of the regulator.Approximate Weights: 4 pounds / 1.8 kgFilter CapabilitiesFree Area: 12 times pipe areaMicron Rating: Polyethylene Filter¹ (Standard): 5 micronsGlass Fiber Filter (Optional): 5 micronsPVDF Filter (Optional): 40 micronsStainless Steel Filter (Optional): 40 micronsOptionsHandwheel adjusting screwInlet screenNACE MR0175² or NACE MR0103 constructionPanel mount (includes spring case with 1/4 NPT vent, handwheel, and panel mounting nut)Closing cap (available on spring case with 1/4 NPT vent)Fluorocarbon (FKM) elastomers for high temperatures and/or corrosive chemicalsSilicone (VMQ) elastomers for cold temperaturesFixed Bleed RestrictionTriple scale outlet pressure gauge (Brass or Stainless steel)Stainless steel stem on the valve plugTire valve or pipe plug in second outletSmart Bleed internal check valveLarge dripwell with manual or automatic drainNOTE:Do not use in high aromatic hydrocarbon service.Product complies with the material requirements of NACE MR0175. Environmental limits may apply.
