Назад в каталог
Промышленное оборудование · SICK

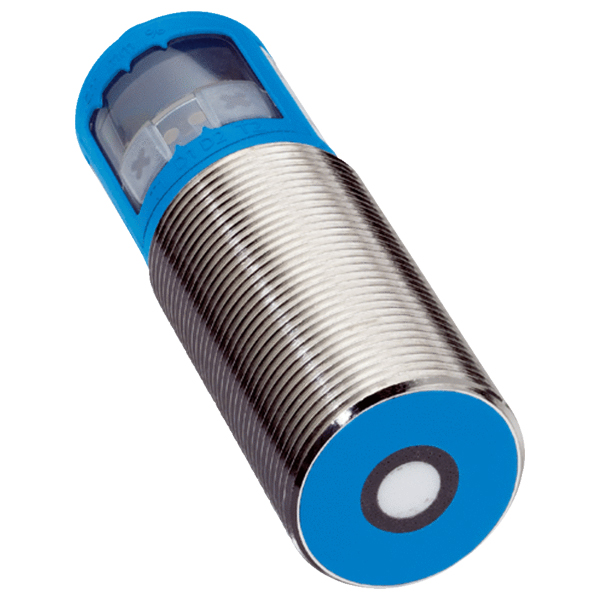

6037666 | UM30-213112 | SICK Ultrasonic Sensors
Артикул: QT-63243
от 314 843 ₸
В наличии: 0
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 6 - 8 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 70153 |
| Manufacturer | SICK |
| Model | Ultrasonic sensors |
| Part Number | 6037666Type: UM30-213112 |
| Shipping Weight | 1 Kg |
| Артикул | 6037666 |
| Срок поставки | 6 - 8 Weeks |
Описание
Technical Details Supply voltage Vs DC 9 V ... 30 V(1) Power consumption = 2.4 W(2) Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT)Ultrasonic transducer: polyurethane foam, glass epoxy resin Thread size M30 x 1.5 Connection type Male connector, M12, 5-pin Indication LED display, 2 x LED Weight 150 g Sending axis Straight Dimensions (W x H x D) 30 mm x 30 mm x 84 mm Enclosure rating IP65 / IP67 Protection class III Limit values, reverse-polarity protected Operation in short-circuit protected network: max. 8 A, class 2. Without load.
