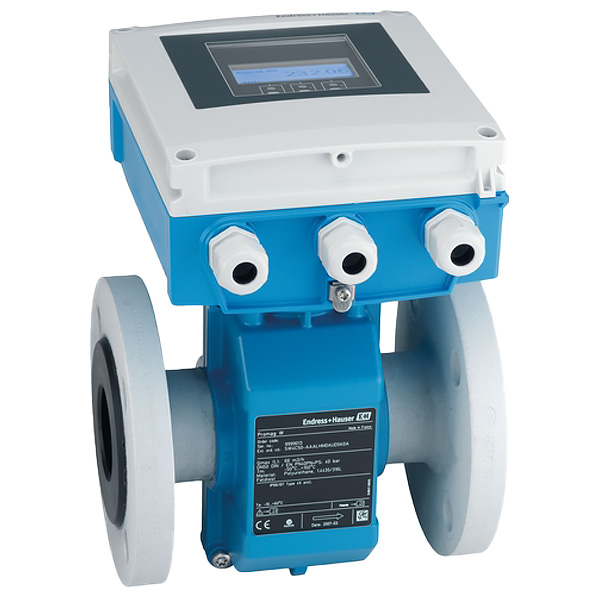

5W4C3H-AAELHP6AHD3K1B+CBJAJB | E+H Proline Promag W 400 Electromagnetic Flowmeter

Benefits:Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure lossFlexible engineering – sensor with fixed or lap-joint process connectionsApplication fitness – EN ISO 12944 corrosion protection for underground or underwater installationImproved plant availability – sensor compliant with industry-specific requirementsSafe operation – no need to open the deviceTime-saving local operation without additional software and hardware – integrated web serverIntegrated verification and build-up detection – Heartbeat Technology Ordering Information Model 5W4C3H Promag W 400, 5W4C3H, DN300 12" Approval AA Non-hazardous area Design E Fixed flange Power Supply L AC 100...240V, AC/DC 24V Output; Input H 4-20mA HART, pulse/freq., switch output Housing P Remote, alu, coated Cable, Remote Version 6 Electrical Connection A Gland M20 Liner H Hard rubber Process Connection D3K PN16, carbon steel, flange EN1092-1 Electrodes 1 Alloy C22 Flow Calibration B 0.2% Sensor Option CB IP68, Type 6P, factory potted, corrosion protection EN ISO 12944 C5-M/Im1 Test, Certificate JAJB Inspection certificate 3.1, EN10204 (material certificate measuring tube, flange, electrode)Pressure test, internal procedure, test report
