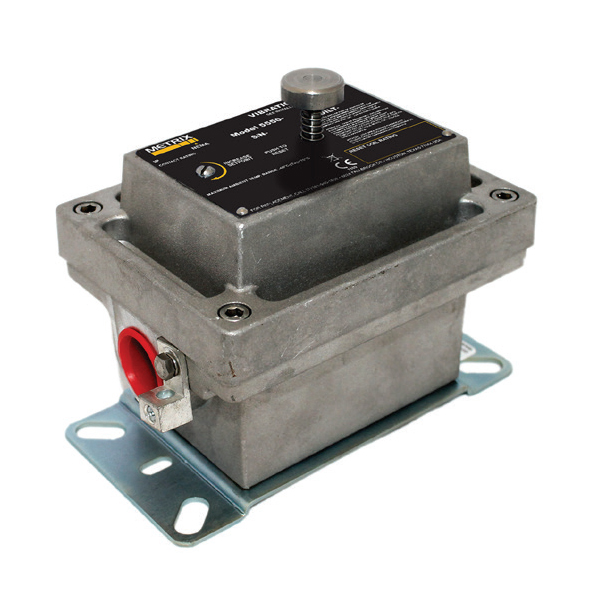

5550-G23-292 | Metrix Mechanical Vibration Switch
Артикул: QT-3533
от 1 136 616 ₸
В наличии: 0
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
Характеристики
Estimated Lead Time
3 - 4 Weeks
ID каталога
3641
Model
5550G - Mechanical Vibration SwitchHazardous Area Rating: G - ATEX/IECExEx d IIC T6 (Ta -40C to +70C) GbEx tD A20 IP66Relay Contacts: 2 - DPDT, Silver, 15AReset / Startup Delay Coil Holding Strength: 3 - 10 gReset / Startup Delay Coil Voltage: 2 - 230 VacWiring Entry / Mounting Hole Pattern¹: 9 - 3/4" NPT (2 places)Environmental Rating: 2 - NEMA 4 / IP66NOTE: When options C=2 and D=3 are simultaneously specified (2g, 24Vdc reset coil), the switch sensitive axis MUST be oriented vertically with t
Part Number
5550-G23-292Ordering Information
Shipping Weight
2 Kg
Артикул
5550-G23-292
Описание
Part Number: 5550-G23-292Ordering InformationModel: 5550G - Mechanical Vibration SwitchHazardous Area Rating: G - ATEX/IECExEx d IIC T6 (Ta -40C to +70C) GbEx tD A20 IP66Relay Contacts: 2 - DPDT, Silver, 15AReset / Startup Delay Coil Holding Strength: 3 - 10 gReset / Startup Delay Coil Voltage: 2 - 230 VacWiring Entry / Mounting Hole Pattern¹: 9 - 3/4" NPT (2 places)Environmental Rating: 2 - NEMA 4 / IP66NOTE: When options C=2 and D=3 are simultaneously specified (2g, 24Vdc reset coil), the switch sensitive axis MUST be oriented vertically with the cover facing up. This coil lacks sufficient holding strength to support the trip plate when the switch is mounted horizontally or upside down. The switch may be mounted at any orientation for all other options.
