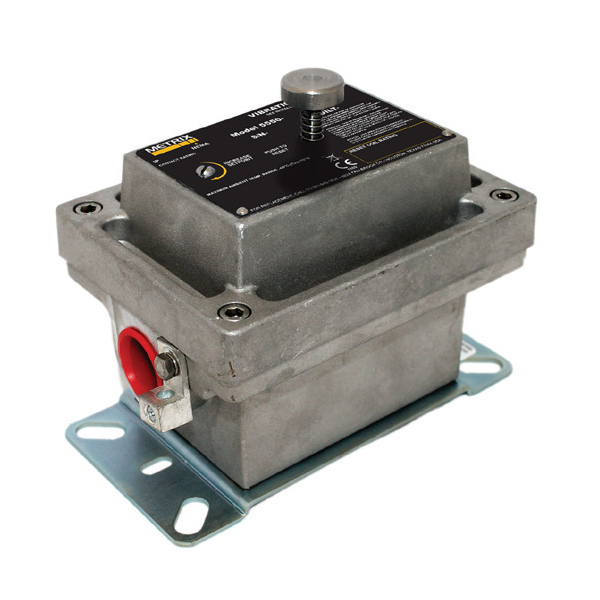

5550-113-010 | Metrix 5550 Mechanical Vibration Switch

Ordering Information Model 5550 Mechanical Vibration Switch Hazardous Area Rating 1 UL US/CA Explosion Proof , silver contacts(1)(2) Class I, Div 1, Groups C,D Class II, Div 1, Groups E,F,G Relay Contacts 1 SPDT, Silver, 15A(1)(3) Reset / Startup Delay Coil Holding Strength(4) 3 10g Reset / Startup Delay Coil Voltage 0 None(2)(4) Wiring Entry / Mounting Hole Pattern(5) 1 ¾” NPT / Metrix 5173 or 5175 Environmental Rating 0 NEMA 4 / IP66(2) Options A=0 through A=4 are only compatible with B=1 or B=2. Options A=5 through A=9 are only compatible with B=3 or B=4. If left blank, option 0 is provided.INMETRO approvals (A=11) available with silver relay contacts only (B=1 or B=2)When D=0 (no reset /startup delay coil), the C option is ignored regardless of which value is selected. All switches ship with a fullscale range of approximately 16gs.Consult Figure 1 for mounting plate dimensions corresponding to E options.
