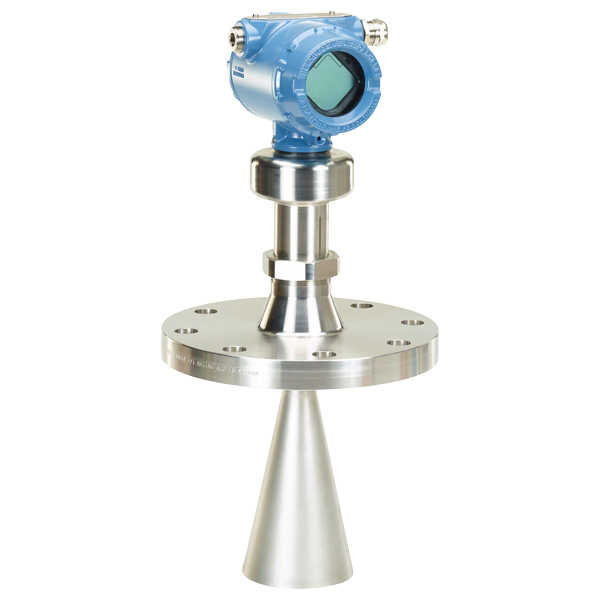

Ordering Information Model 5408 Radar Level Transmitter Profile A Standard monitoring & control applications Measurement type 4 Liquid & solids level measurement Performance class S StandardReference accuracy: ±0.08 in. (±2 mm) Signal output H 4–20 mA with HART® communication (default output from factory is HART 7, add option code HR6 for HART 6) Housing material S Stainless steel (SST) Conduit/cable threads 1 ½-14 NPT Hazardous locations certifications NA None Materials of construction 1 316/316L/EN 1.4404 Process connection type B Bracket mounting Process connection size Z None (use when ordering bracket mounting) Process connection rating ZZ For use with non-flange process connection type Antenna type PAS Parabolic antenna, swivel mount Operating pressure: -7 to 43 psig (-0.5 to 3 bar)Operating temperature: -67 to 392 °F (-55 to 200 °C) Antenna size 8 8-in. (DN200) Open air applications configuration OA Open air applications configuration; LPR (Level Probing Radar) Special quality assurance Q4 Calibration data certificate
