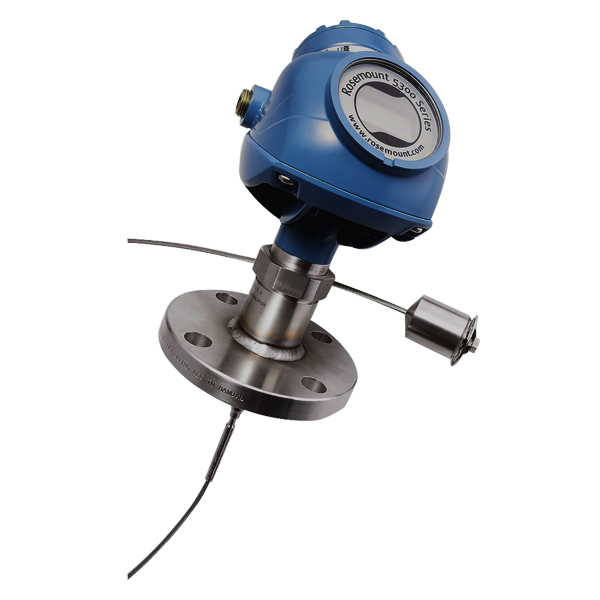

Ordering Information Model 5301 Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe) Signal output H 4-20 mA with HART communication (default output from factory is HART 5, add option code HR7 for HART 7) Housing material A Polyurethane-covered Aluminum (Aluminum alloy A360, maximum 0.6 percent Cu) Conduit / cable threads 2 M20 x 1.5 adapter Operating temperature and pressure S Design and operating temperature:-40 to 302 °F (-40 to 150 °C) -15 to 580 psig (-1 to 40 bar) Material of construction: Process connection / probe 1 316/316L/EN 1.4404 Sealing O-ring material V Fluoroelastomer (FKM) Probe type 4A Description: Rigid Single Lead (8 mm) Process connections: Flange / 1- in.(1), 1½-in., 2- in.(1) Thread / Tri Clamp Probe lengths: Min: 1 ft. 4 in. (0.4 m), Max: 9 ft. 10 in. (3 m) Probe length units M Metric (meters, centimeters) Total probe length (feet/m) 002 Total probe length (inch/cm) 00 Process connection - size / type BA 3-in. Class 150, RF (Raised Face Type) Hazardous locations certifications E1(2) ATEX Flameproof Display M1 Integral digital display Special quality assurance Q4 Calibration data certificate Material traceability certification Q8 Material traceability certification consistent with ISO10474-3.1:2013 / EN10204-3.1:2004 Special quality assurance Q4 Calibration data certificate Material traceability certification Q8 Material traceability certification consistent with ISO10474-3.1:2013 / EN10204-3.1:2004 Safety certifications QT Safety-certified to IEC 61508 with certificate of FMEDA data. Only available with HART 4-20 mA output (output code H). Overfill prevention U1Overfill prevention according to WHG/TUV Only available with Operating Temperature and Pressure code S.Probes are intrinsically safe.
