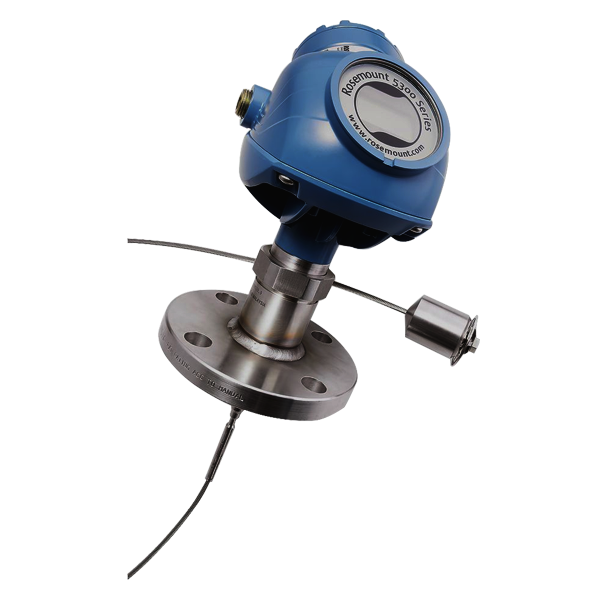

5301HA2S1V4AM00195AAE1M1P1C1Q4Q8N2P2 | Rosemount 5300 Level Transmitter

Part Number: 5301HA2S1V4AM00195AAE1M1P1C1Q4Q8N2P2SpecificationsAccuracy: ± 0.12 in. (3 mm)Repeatability: ± 0.04 in. (1 mm)Measurement Range: Up to 164 ft (50 m)Operating Pressure: Full vacuum to 5000 psi (Full vacuum to 345 bar)Operating Temperature: -320 to 752 °F (-196 to 400 °C)Communication Protocol: 4-20 mA/HART®, Foundation? Fieldbus, Modbus®Safety:SIL 2 IEC 61508 certificationTÜV tested and WHG approved for overfill preventionRemote proof-test capabilities through verification reflectorDiagnostics: Enhanced diagnostics enabling proactive maintenanceProbe Types: Rigid single lead, Segmented single lead, Flexible single lead, Rigid twin lead, Flexible twin lead, Coaxial and large coaxial, PTFE coated probes, Vapor probeWarranty: Up to five yearsFeaturesDirect Switch Technology gives increased sensitivity, high reliability, and long measurement rangesSignal Quality Metrics gives you the ability to work proactively with your level instrumentationProbe End Projection offers greater level measurement reliabilityDynamic Vapor Compensation for improved plant heat rateVerification reflector for remote proof-testing and unique level transmitter verificationUltra-thin layer detection through Peak-in-Peak technology
